$245.00

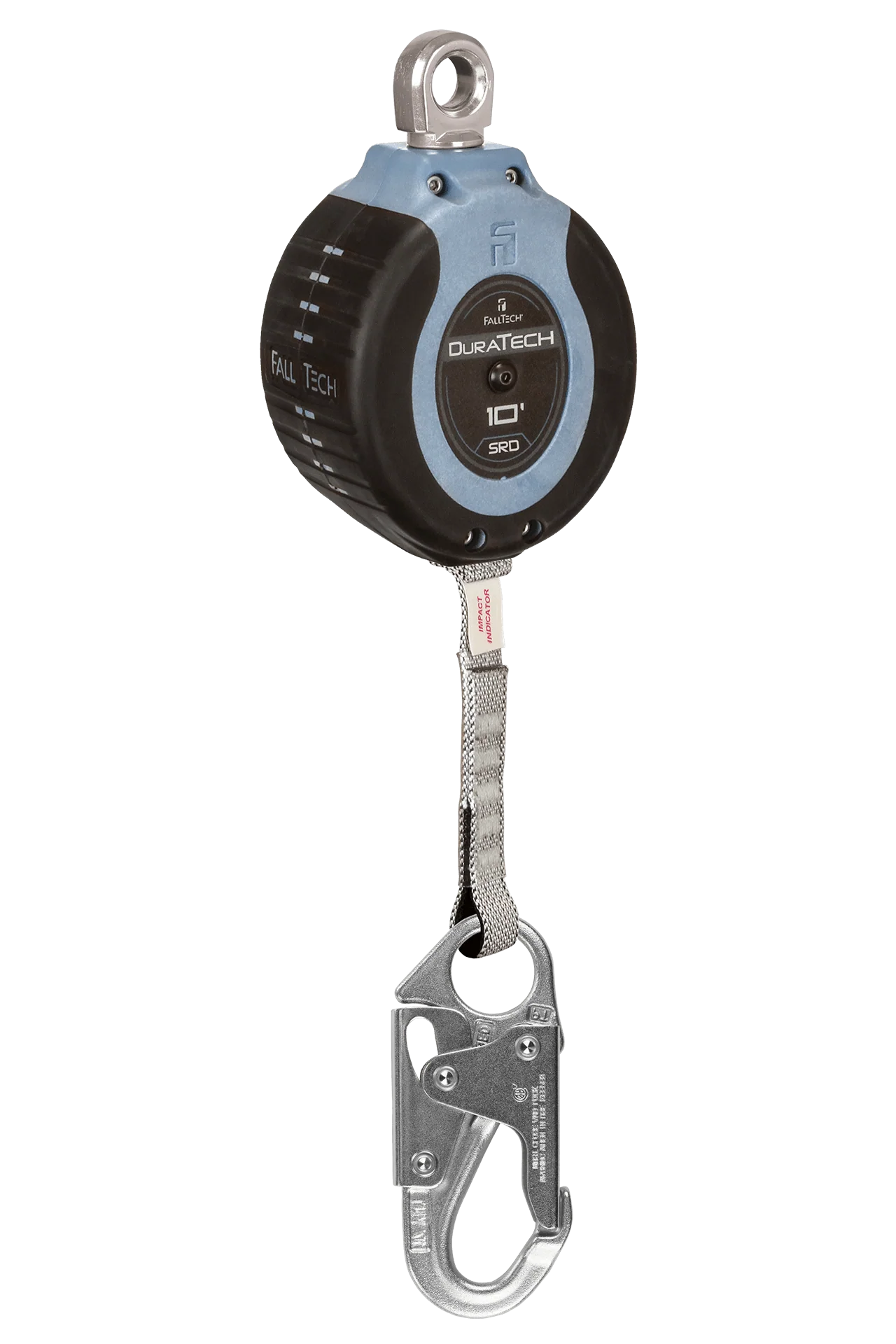

10' DuraTech® Web SRL with Steel Snap Hook—
$245.00
The Story
10' DuraTech® Web SRL with Steel Snap Hook
FEATURES
- Compact size is simple to install and relocate as worksite changes require
- Dyneema® web lifeline resists abrasion while providing trusted strength.
- Overmolded glass-filled nylon housing contributes unmatched impact resistance
- Internal inertial braking system provides smooth deceleration with minimal fall forces
- Integrated aluminum alloy swivel-eye helps to prevent lifeline twisting for smooth operation
- Features alloy steel snap hook lifeline connector
- User-supplied anchorage connector required
- Complies with ANSI Z359.14-2014
MATERIAL SPECIFICATIONS
Webbing: Dyneema®/Polyester blend; 4,500 lb min.
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
PERFORMANCE SPECIFICATIONS
Static Strength: 3,000 lb min.
ANSI SRL Class: Class B
Avg. Arrest Force: 900 lb
Max. Arrest Force: 1,800 lb
Max. Arrest Distance: 54"
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 310 lb max.
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure
COMPLIANT WITH:
OSHA 1926.502 and 1910.66
ANSI Z359.14-2014
