The Story

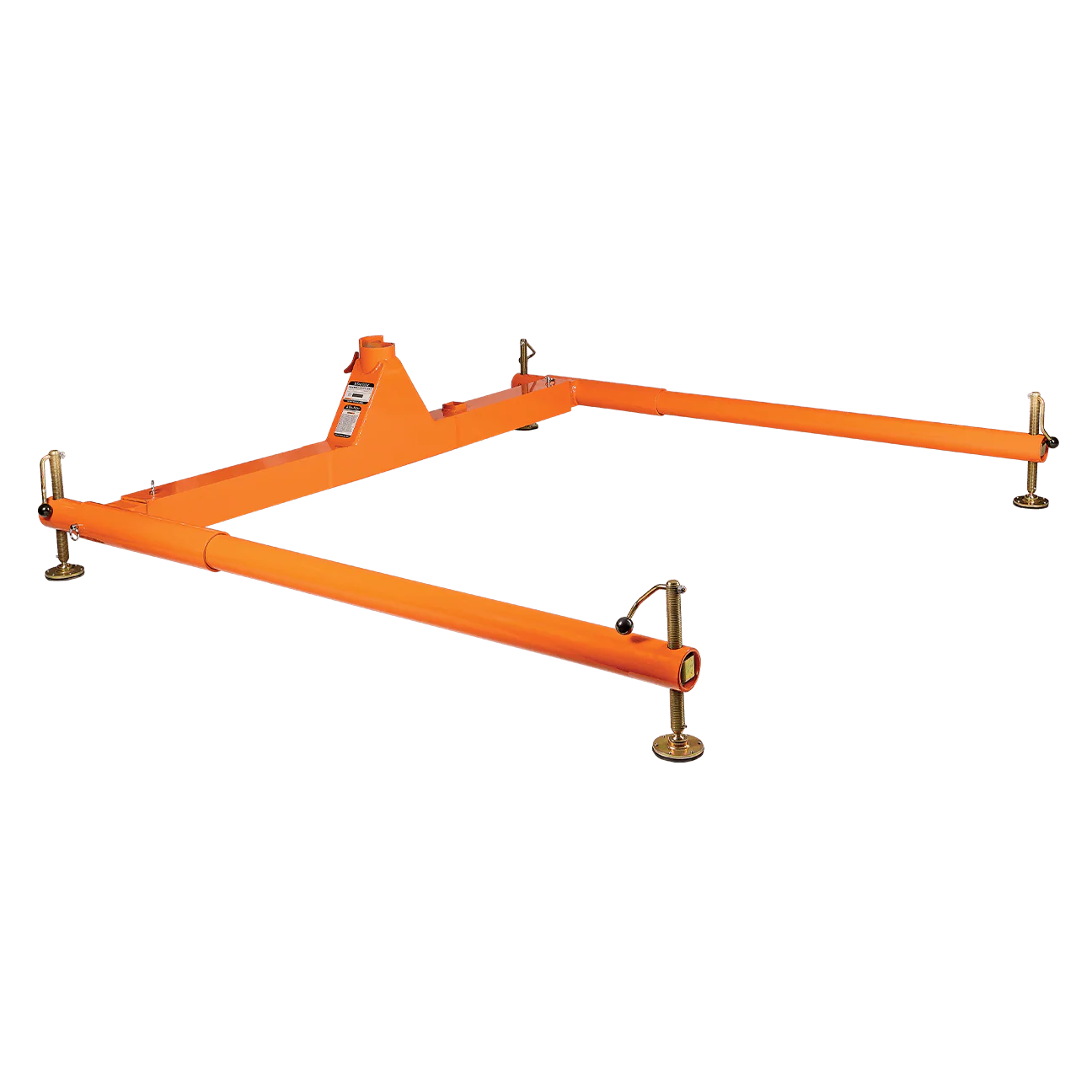

3pc Portable Davit Base for 24" to 44" Systems
FEATURES
- Base width adjusts from 73" to 100" to fit a wide range of openings
- Modular design compatibility with offset davit arms and mast extensions.
- 3pc base includes integral bullseye level and tool-free height adjustment
- Lightweight powder coated aluminum combined with alloy steel for long life and durability
- Meets OSHA 1926.502 and 1910.66 regulations only when used with offset davit arms and mast extensions
MATERIAL SPECIFICATIONS
Portable Base: Powder coated 6061 aluminum and plated steel
Sleeve Insert: PVC pipe
PERFORMANCE SPECIFICATIONS
Rescue Static Strength: 5,000 lb min.
Entry/Egress Static Strength: 1,800 lb min.
Rescue User Capacity: 2 users, 310 lb max. for each person
Entry/Egress Capacity: 1 user, 310 lb max.
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure
COMPLIANT WITH:
OSHA 1926.502 and 1910.66 when used in a complete system
