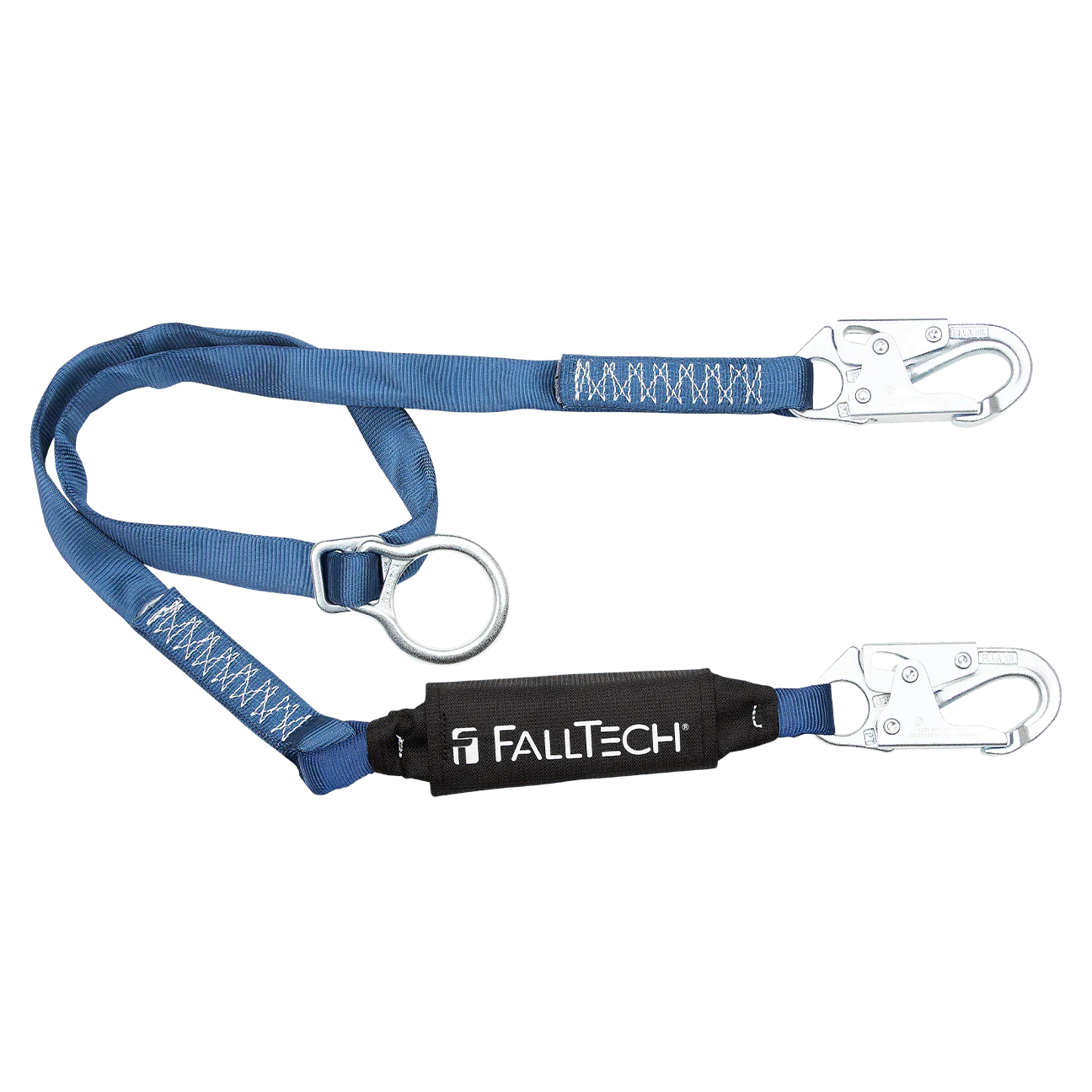

6' ViewPack® Tie-back Energy Absorbing Lanyard, Single-leg with Steel Snap Hooks - CSA

6' ViewPack® Tie-back Energy Absorbing Lanyard, Single-leg with Steel Snap Hooks - CSA

$27.12

Original: $77.50

-65%
6' ViewPack® Tie-back Energy Absorbing Lanyard, Single-leg with Steel Snap Hooks - CSA—

$77.50

$27.12

The Story

6' ViewPack® Tie-back Energy Absorbing Lanyard, Single-leg with Steel Snap Hooks - CSA

FEATURES

  • Constructed with jacketed double-layer polyester webbing for added strength and abrasion resistance
  • Features Tie-back D-ring for wrap-around anchoring and eliminates the need for a separate tie-off anchor point.
  • Energy absorber features patented ViewPack® cover with inspection window
  • ViewPack® cover also features WrapPack label protection
  • Includes alloy steel snap hooks for harness attachment and D-ring anchorage connection
  • Complies with ANSI Z359.13-2013
Webbing:                             Polyester; 5,000 lb min. static strength
Energy Absorber:              Polyester tear-away
Connectors:                       Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
D-ring:                                Plated alloy steel; 5,000 lb min. static strength

PERFORMANCE SPECIFICATIONS

Static Strength:                            5,000 lb min.
ANSI Lanyard Class:                    6' free fall
Max. Arrest Distance:                  48"
Avg. Arrest Force:                        900 lb
Max. Arrest Force:                       1,800 lb
ANSI User Capacity:                    130 to 310 lb max.
OSHA User Capacity:                  130 to 310 lb max.

  • 82562 (ANSI Compliant)
  • C82562 (CSA Compliant)

DOWNLOADS

Instruction Manual (ANSI)
Instruction Manual (CSA)
Declaration of Conformity (ANSI)
Declaration of Conformity (CSA)

COMPLIANT WITH:

ANSI Z359.13-2013
OSHA 1926.502 and 1910.66
CSA Z259.11-2017
