$1,260.00
APEX™ Pro Adjustable Wood Pole Fall Restrict Device for Distribution Poles—
$1,260.00
The Story

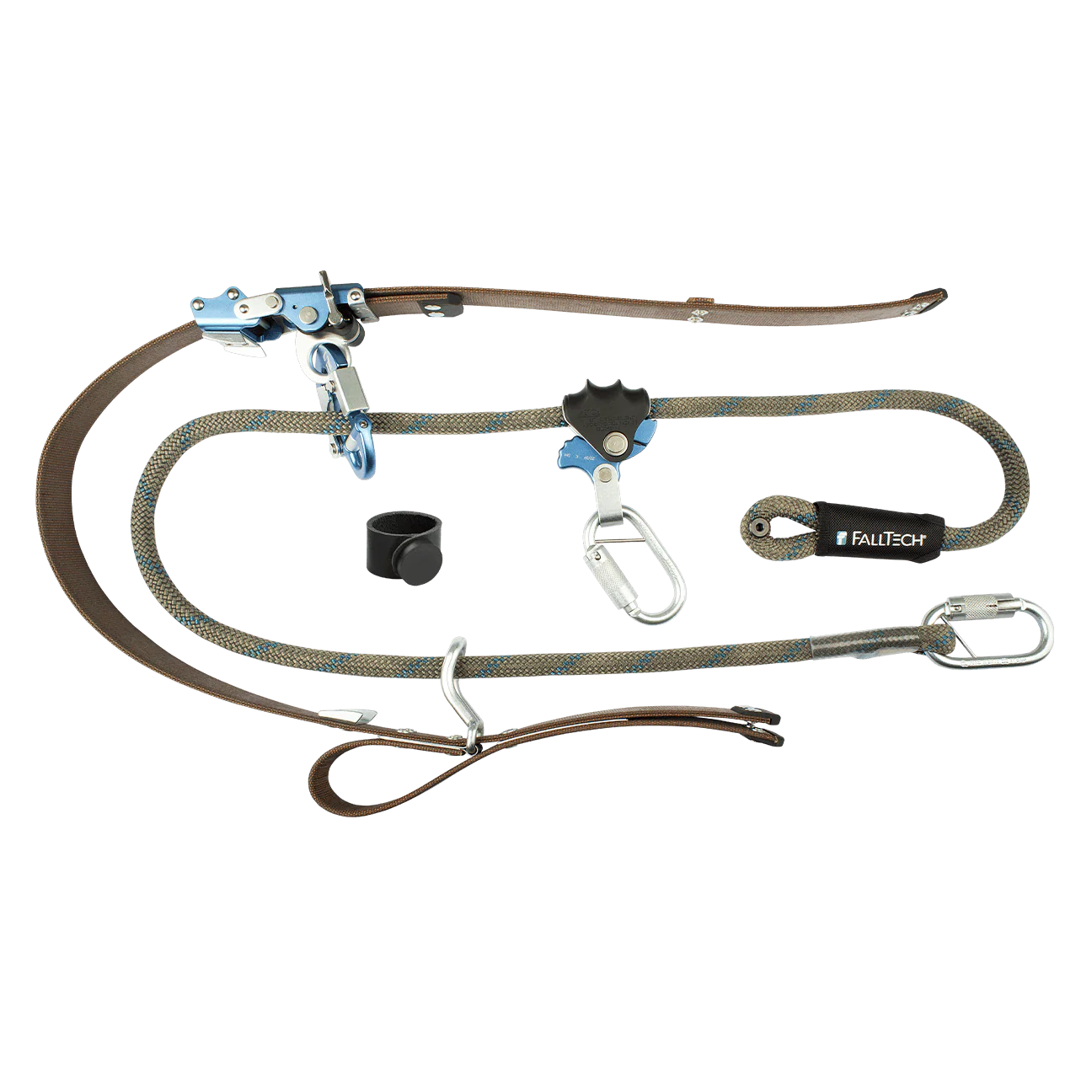

APEX™ Pro Adjustable Wood Pole Fall Restrict Device for Distribution Poles
FEATURES
- Designed for exceptional performance and ease of operation in all conditions (dry, wet, or icy)
- Atriculating strap adjuster conforms to any shape or size pole while maintaining proper orientation while climbing or falling. Climb faster, smoother, and more confidently.
- Purpose built, proprietary compact snap hook makes connection quick and easy with as few as two fingers
- Horizontal Rope Adjuster designed for ultimate ergonomics, even with a gloved hand
- Articulating Strap Adjuster and Horizontal Rope Adjuster both feature thumb release levers for effortless and infinite adjustment
- Extra large diameter rope improves ergonomics and durability to traditional 10mm ropes
- Unique slotted bent D-ring better manages off-hand rope and prevents pinching of rope or fingers during use
- Included neodymium magnetic tail keeper mitigates trips and snags caused by the tail end of the rope or traditional tail keepers
- Compatible with wood poles measuring 4" to 18" in diameter
- Complies with CSA Z259.14-12 (R2021) Type AB and ASTM F887-20 Type AB
MATERIAL SPECIFICATIONS
Strap: Abrasion/Cut Resistant Nylon; 5,000 lb min. static strength
Rope: 15 mm Technora® Kernmantle Rope; 5,000 min. static strength
Mini Snap Hook: Aluminum Alloy and Plated Alloy Steel; 5,000 lb min. static strength with 3,600 lb gate strength
Body Belt Carabiners: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Adjusters: Aluminum Alloy and Plated Alloy Steel
Cleats and Bent D-ring: Plated Alloy Steel
PERFORMANCE SPECIFICATIONS
Fits Pole Size: 4" to 18" pole diameter
OSHA User Capacity: 425 lb max.
CSA User Capacity: 425 lb max.
ASTM User Capacity: 425 lb max.
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure
COMPLIANT WITH:
ASTM F887-20 Type AB
OSHA 1926.502 and 1910.66
CSA Z259.14-12(R2021) Type AB
