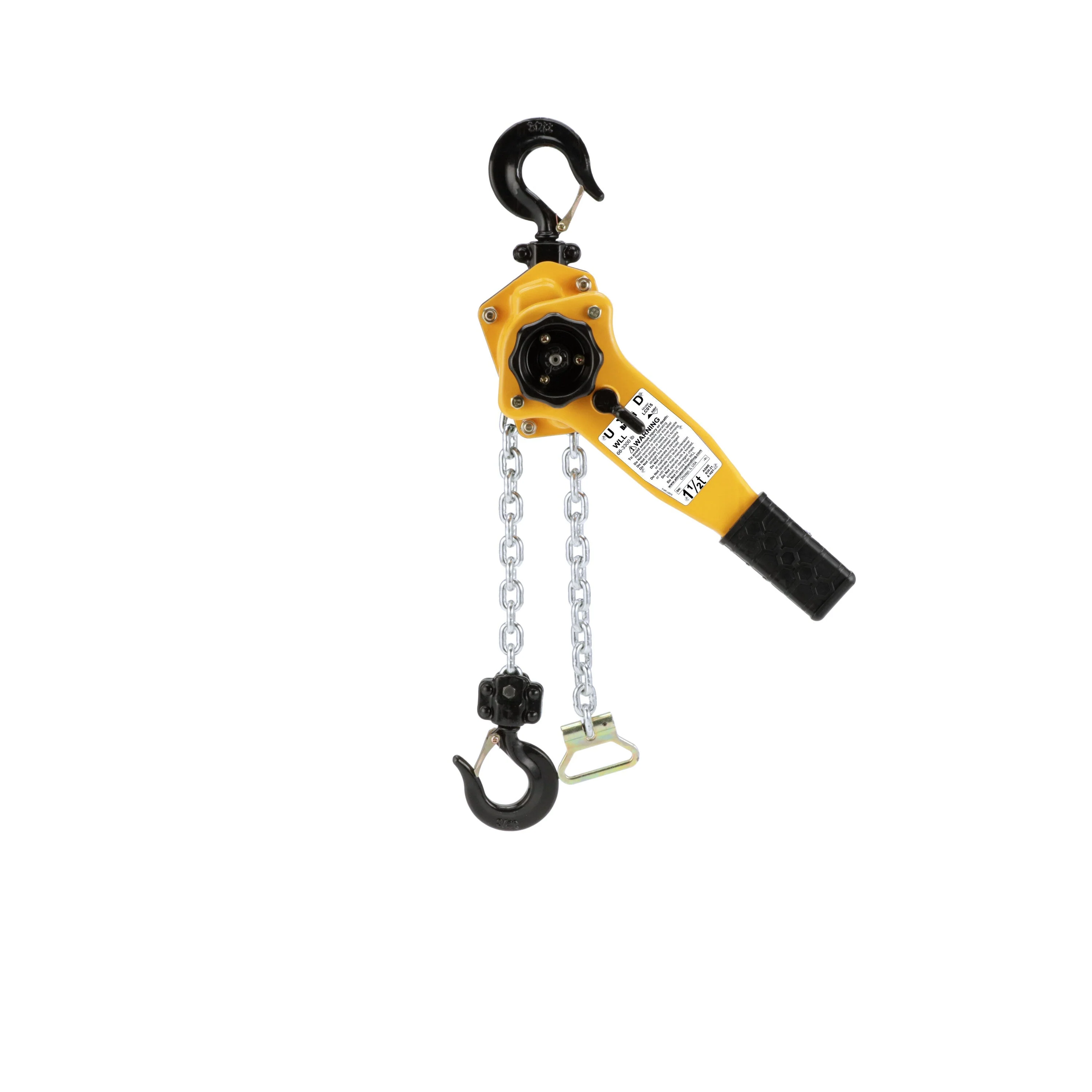

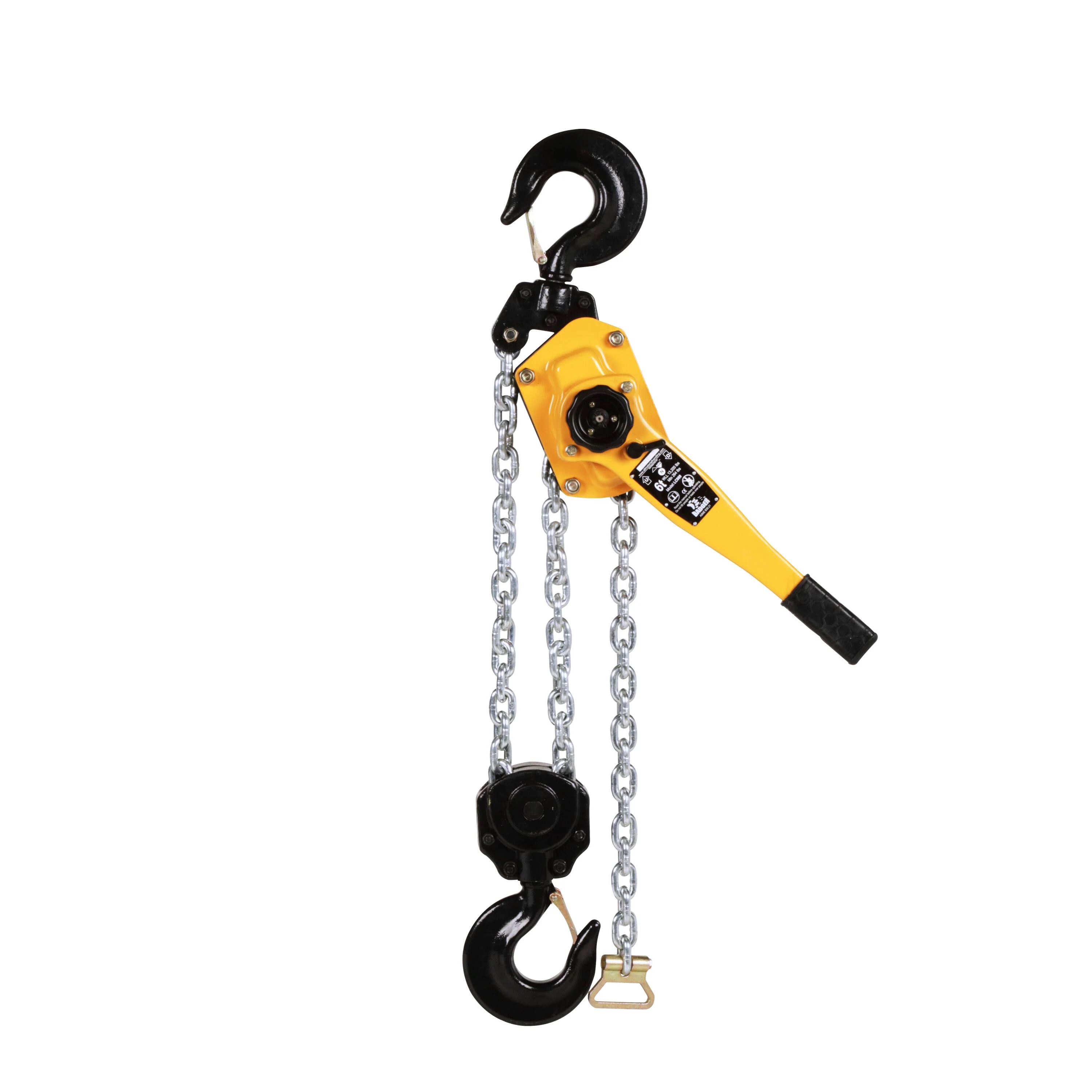

Badger Lever Hoist 0.75t to 6t

Badger Lever Hoist 0.75t to 6t



The All Material Handling LC Series Badger Lever Chain Hoist 0.75t to 6t - the perfect solution for your heavy lifting needs. With easy one-hand operation and setup, this hoist allows for operation in any orientation. Its lightweight and durable formed steel enclosure protects against contamination and can be quickly disassembled for easy maintenance.

But that's not all. This hoist boasts a range of additional features and benefits that set it apart from the competition:

• Easy One Hand Operation and Setup: The chain can be pulled through the hoist by a pull handle for easy set up and load attachment before engaging the selector for pulling. The pull handle also acts as a chain stop. Short ratchet strokes of a non-slip rubber grip lever and 360-degree rotation requires minimal space for operation. The pull force to operate may be 20 to 30% less than others.
• Operation in any orientation: A fully enclosed horseshoe-shaped chain guard keeps the load chain in contact with the lift wheel, ensuring operation in any orientation.
• Durable and Lightweight Construction: The formed steel enclosure protects against contamination and can be quickly disassembled for easy maintenance. Powder coating and plated finishes on exposed components are used for resistance to corrosion.
• Heat-Treated Internal Parts: Internal parts are heat-treated for strength and reliability with fully enclosed gearing to protect from contamination. All gears and shafts run on caged roller bearings including the lift wheel which is machined for smooth operation and long life.
• Automatic Wesson-Style Mechanical Load Brake: The self-adjusting brake is surrounded by an enclosure to limit contamination and is designed to react to the inertia of a descending load regardless of the operator setting.
• Heavy-Duty Hooks: Drop-forged alloy hooks are designed to stretch when overloaded before chain failure and are equipped with heavy-duty cast steel safety latches attached by a bolt and lock nut. The top hook mounting articulates to aid in rigging and help ensure a straight line loading between hooks.
• Grade 80 Alloy Load Chain: The zinc-plated load chain is durable and reliable.
• Certified and Meets Industry Standards: Each hoist is proof tested at 1½ times the WLL and shipped with a certification of test matching the individualized serial number stamped in the nameplate. An operation and spare parts manual is also supplied in English, French, and Spanish. The hoist meets ASME B30.21, OSHA, and NASA-STD-8719.9.
• Available in Standard Lifts: The hoist is available in standard lifts of 5, 10, and 20 feet, and spare parts are stocked in the USA.

The All Material Handling LC Series Badger Lever Chain Hoist 0.75t to 6t is the perfect combination of strength, reliability, and ease of use. With features and benefits that are sure to make any job easier, this hoist is a must-have for any heavy lifting project.



Badger Lever Hoist 0.75t to 6t Specifications:

• Brand: All Material Handling (AMH)
• Series: Badger LC Series
• Chain: Grade 80 Zinc Plated Alloy Load Chain

	0.75t	1.5t	3t	6t
Load Capacity (in lbs)	1650	3300	6600	13200
Lever Length	11.4"	16.5"	16.5"	16.5"
Pull to Lift Rated Load	31 lbs	54 lbs	72 lbs	76 lbs
Min. Between Hooks	12.6"	15"	18.9"	24.4"
Hook Opening w/ Latch	0.94"	1.14"	1.42"	1.81"
Lifting Height	5ft, 10ft, 15ft, 20ft	5ft, 10ft, 15ft, 20ft	5ft, 10ft, 15ft, 20ft	5ft, 10ft, 15ft, 20ft
