CM Wire Rope Clips
HomeStore

CM Wire Rope Clips

CM Wire Rope Clips

Select Size
From $6.16

Original: $17.60

-65%
CM Wire Rope Clips—

$17.60

$6.16

The Story

  • DESCRIPTION
  • SPECIFICATIONS
  • FEATURES
  • RESOURCES

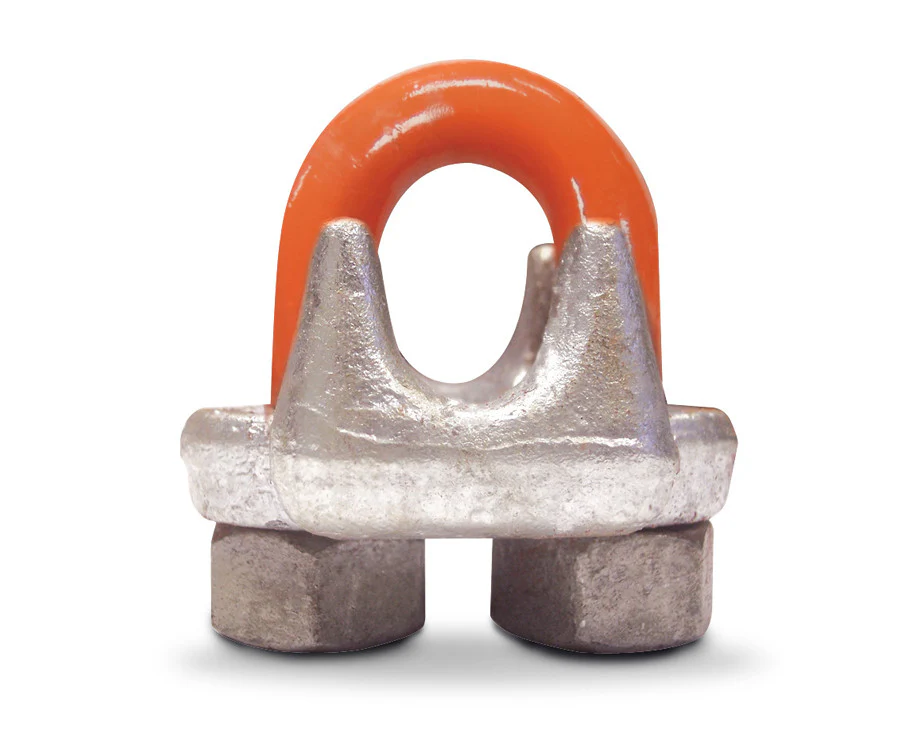

Wire Rope Clips are used to secure the end of wire rope when forming a loop for wire rope turn-back, for example. CM’s Wire Rope Clips are durable and strong with a drop forged base and effective for multiple applications.

(1/4" & 3/8" are only sold in sets of 2)

  • Precision manufactured and galvanized to meet federal specifications (FF-C-450 Type 1 Class 1) on 1/4" and larger.
  • Drop forged base
Dimensions (in.)
Size (in.) Product Code A B C D E F G H Torque (ft-lb) Rope Turnback Weight (lbs.)
1/4 M246 5/16-18UNC 1.03 0.50 0.75 0.66 0.56 1.19 1.44 15 4-3/4 0.18
3/8 M248 7/16-14UNC 1.50 0.75 1.00 0.91 0.75 1.63 1.94 45 6-1/2 0.42
1/2 M250 1/2-13UNC 1.88 1.00 1.19 1.16 0.88 1.91 2.31 65 11-1/2 0.85
