Doughty Atom Hook Clamp

Doughty Atom Hook Clamp

Select Colour
From $11.65

Original: $33.28

-65%
Doughty Atom Hook Clamp—

$33.28

$11.65

The Story

Doughty Atom Hook Clamp


A high tensile extruded aluminium clamp that is suitable for 32mm (1.25″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide. Slotted to hold captive an M6 nut or bolt head and supplied with an M6 X 30 bolt and wing nut.

Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.


Downloads:

User Manual



Key Features:

  • Constructed from high tensile extruded aluminium
  • Compatible with 32mm (1.25″) diameter tubes
  • Slotted to hold captive an M6 nut or bolt head
  • Supplied with M6 X 30 bolt and wing nut
  • Available in polished silver or powder coated black finish


Specifications:

  • WLL: 100Kg
  • Tube Diameter: 1¼"-32mm
  • Clamp Width: 30mm (1.18")
  • Material: High tensile extruded aluminium
  • Fasteners: M6 X 30 bolt and wing nut included


References:

  • Doughty Engineering
  • Product Code: T58830 / T5883001
  • Data Sheet

Doughty Atom Hook Clamp - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

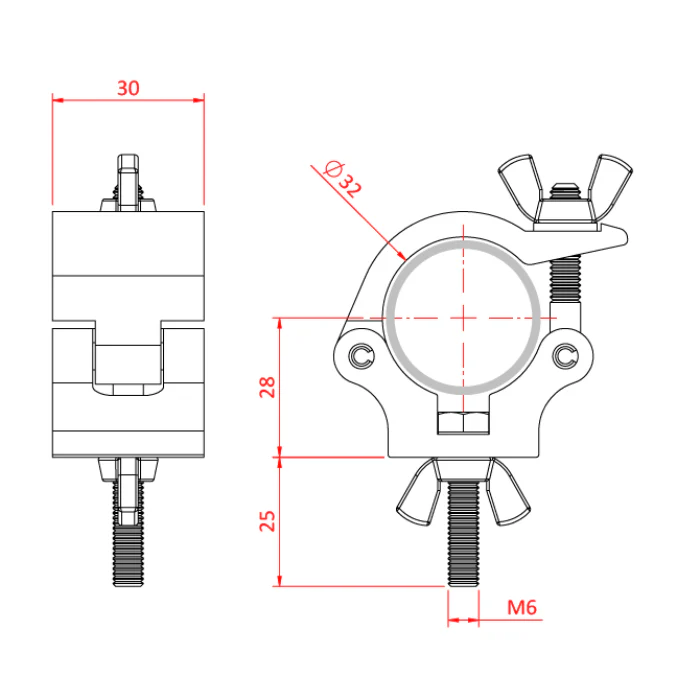

Doughty Atom Hook Clamp - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Doughty Atom Hook Clamp


A high tensile extruded aluminium clamp that is suitable for 32mm (1.25″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide. Slotted to hold captive an M6 nut or bolt head and supplied with an M6 X 30 bolt and wing nut.

Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.


Downloads:

User Manual



Key Features:

  • Constructed from high tensile extruded aluminium
  • Compatible with 32mm (1.25″) diameter tubes
  • Slotted to hold captive an M6 nut or bolt head
  • Supplied with M6 X 30 bolt and wing nut
  • Available in polished silver or powder coated black finish


Specifications:

  • WLL: 100Kg
  • Tube Diameter: 1¼"-32mm
  • Clamp Width: 30mm (1.18")
  • Material: High tensile extruded aluminium
  • Fasteners: M6 X 30 bolt and wing nut included


References:

  • Doughty Engineering
  • Product Code: T58830 / T5883001
  • Data Sheet
