The Story

Doughty 32mm Atom Swivel Coupler


Consists of a pair of high tensile extruded aluminium clamps back to back and designed to swivel that are suitable for 32mm (1.25″) diameter tubes. It has a WLL of 100Kg and uses a pair of 30mm (1.18″) wide clamps. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.


Downloads:

User Manual



Key Features:

  • High tensile extruded aluminium construction
  • Swivel design for versatile positioning
  • Compatible with 32mm (1.25″) diameter tubes
  • Clamp width of 30mm (1.18″) ensures secure fit
  • Available in polished silver or powder coated black


Specifications:

  • WLL: 100Kg
  • Tube Diameter: 1¼"-32mm
  • Clamp Width: 30mm (1.18")
  • Tube Centres: 56mm (2.20")
  • Material: High tensile extruded aluminium


References:

  • Doughty Engineering Official Product Line
  • Product Data Sheet
  • Industry Standard for Decorative Trussing

Doughty 32mm Atom Swivel Coupler - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

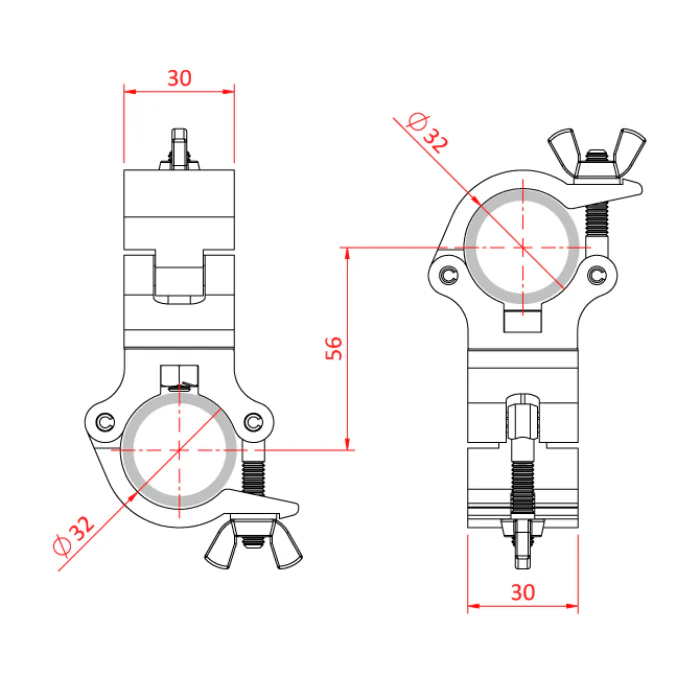

Doughty 32mm Atom Swivel Coupler - Image 3
