Doughty Big Ben Clamp

Doughty Big Ben Clamp

The Doughty Big Ben Clamp is supplied with a 1.1'' diameter Spigot. Manufactured from high tensile Aluminum Extrusion, this clamp is widely applicable in the theatre, film, TV and photographic industries. Available in Polished Aluminum.

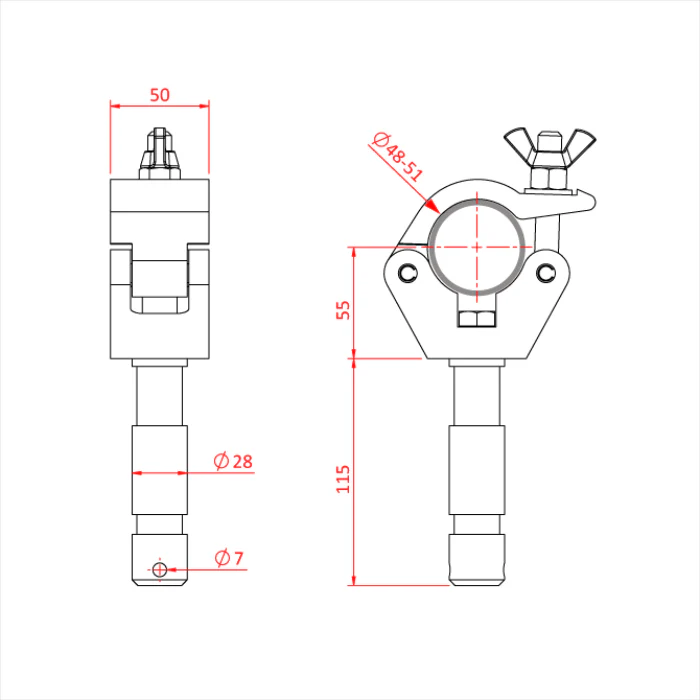

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and is 50mm (1.97″) wide factory fitted with a 28mm (1.10″) diameter TV spigot. Available in polished silver or powder coated black.

Downloads:

User Manual

---

Key Features:

• High tensile extruded aluminium construction
• Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
• Factory fitted with a 28mm (1.10″) diameter TV spigot
• Available in polished silver or powder coated black finishes
• Designed for professional rigging and mounting applications

---

Specifications:

• WLL: 200Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Material: High tensile extruded aluminium
• Spigot Diameter: 28mm (1.10″)

---

References:

• Doughty Engineering official specifications
• Product Data Sheet
• Industry-standard TV spigot compatibility
