Doughty Supaclamp

Doughty Supaclamp

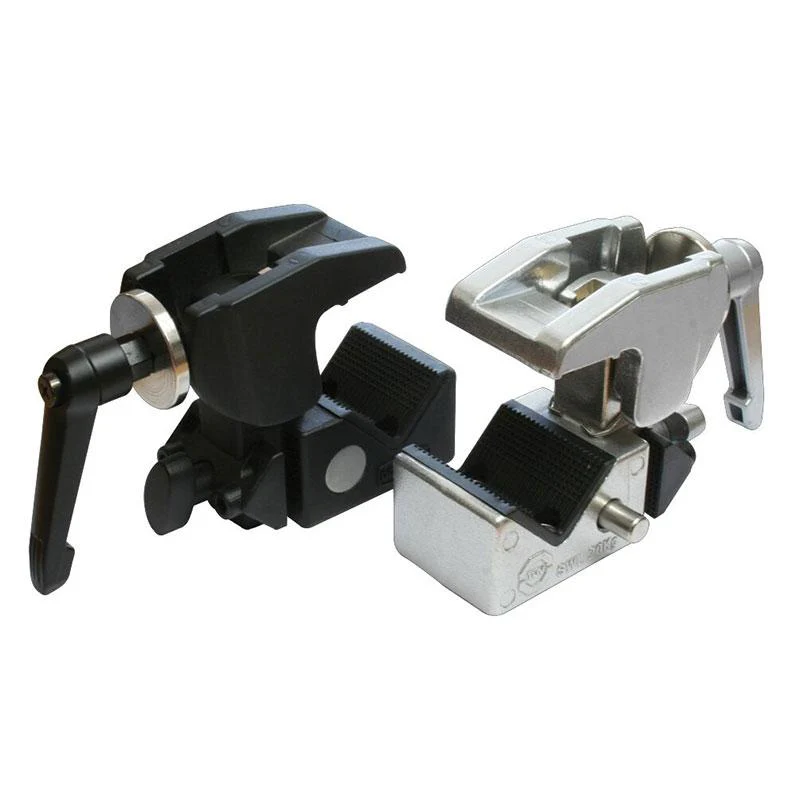

Doughty Supaclamps are pressure die-cast aluminum clamps available in both natural aluminum and black. They can clamp onto round poles of up to 2'' diameter. This truss clamp is also supplied with a wedge to grip flat surfaces up to 1.2'' thick.

Doughty Engineering manufactures a range of accessories and spigots that snap into the supaclamp to hold lights etc. These accessories can be quickly released by pressing the quick release knob on the side of the clamp, a thumb screw secures the spigot once fitted.

Downloads:

User Manual

---

Key Features:

• Pressure die-cast aluminum construction for durability
• Compatible with round poles up to 2'' in diameter
• Includes wedge insert for securing flat surfaces up to 1.2'' thick
• Quick-release knob and thumb screw for fast accessory changes
• Available in natural aluminum and black finishes

---

Specifications:

• SWL: 44 lbs
• Width: 1.77''
• Weight: 1 lb
• Objects to be clamped – Round Pole: 0.6'' - 2'' diameter
• Objects to be clamped – Flat Surfaces: 0.2'' - 2'' thick

---

References:

• Doughty Engineering – Manufacturer since 1985
• Member of ESTA (Entertainment Services and Technology Association)
• Member of PLASA (Professional Light and Sound Association)
