Doughty Super Lightweight to Atom Swivel Combo

Doughty Super Lightweight to Atom Swivel Combo

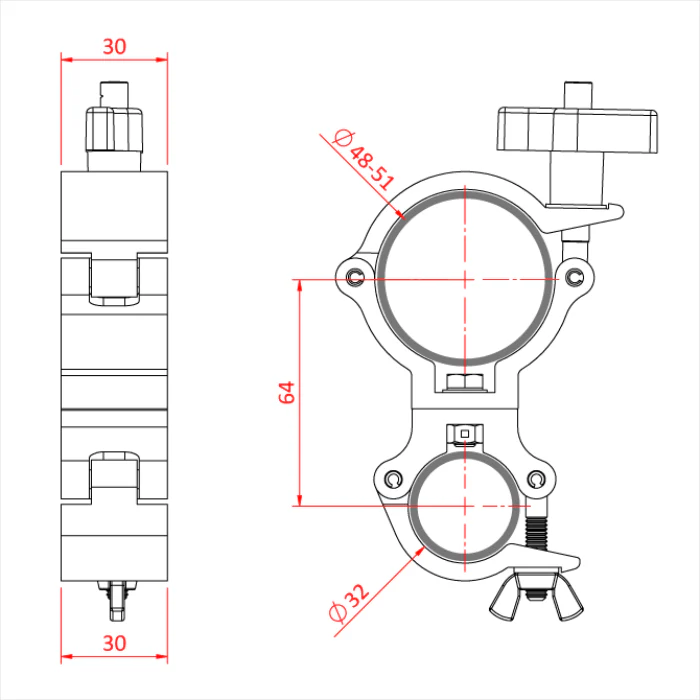

A pair of high tensile extruded aluminium clamps back to back, and designed to swivel that are suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes on one side and 25mm (0.98″), 32mm (1.26″), 35mm (1.38″) or 38mm (1.50″) diameter tubes on the other. Available in polished silver or powder coated black.

Downloads:

Data Sheet T58132-T5813201
Data Sheet T58133-T5813301
Data Sheet T58134-T5813401
Data Sheet T58135-T5813501

---

Key Features:

• Back-to-back swivel clamp design for versatile connectivity
• Compatible with tube diameters from 48mm to 51mm on one side
• Supports 25mm, 32mm, 35mm, and 38mm tube diameters on the other side
• Constructed from high tensile extruded aluminium for strength
• Available in polished silver or powder coated black finishes

---

Specifications:

• WLL: 100Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 30mm (1.18")
• Material: High tensile extruded aluminium
• Finish Options: Polished silver or powder coated black

---

References:

• T58132-T5813201
• T58133-T5813301
• T58134-T5813401
