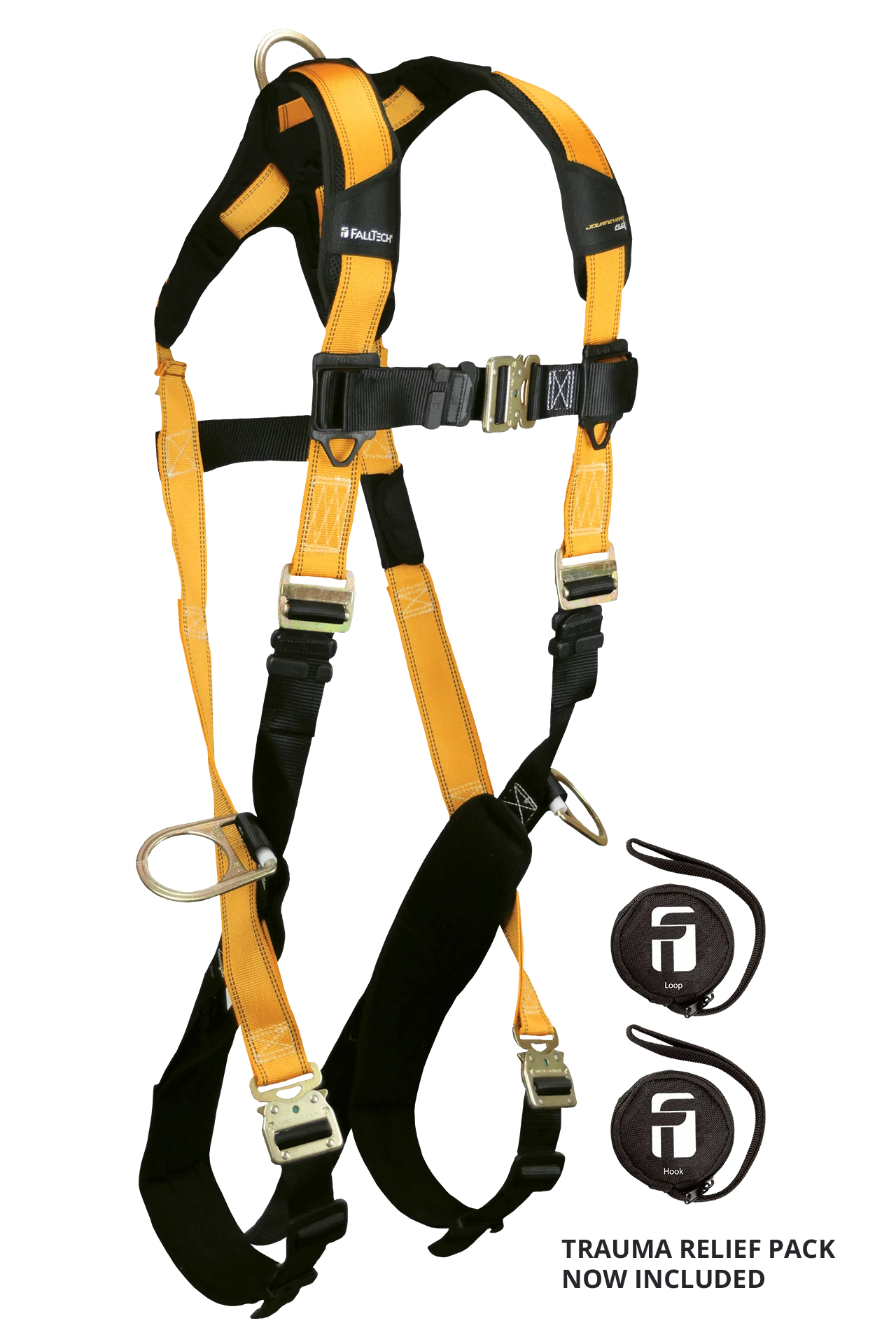

Journeyman Flex® Steel 3D Standard Non-belted Full Body Harness
HomeStore

Journeyman Flex® Steel 3D Standard Non-belted Full Body Harness

Journeyman Flex® Steel 3D Standard Non-belted Full Body Harness

$76.82

Original: $219.50

-65%
Journeyman Flex® Steel 3D Standard Non-belted Full Body Harness—

$219.50

$76.82

The Story

Journeyman Flex® Steel 3D Standard Non-belted Full Body Harness

FEATURES

  • Features integral padded shoulder yoke and hip-to-seat leg pads to provide advanced breathable user comfort
  • Proprietary dorsal attachment sleeve supports effortless addition of personal SRLs.
  • Plated alloy steel low-profile spring tension roller torso adjusters provide simple upper-body adjustment
  • Dorsal and hip D-rings and quick connect chest and leg buckles are all durably plated alloy steel
  • Quick-connect buckles feature visual indicators showing positive connection
  • UniFit sizing accommodates small, medium and large fit
  • Includes fully adjustable suspension trauma relief system
  • Complies with ANSI Z359.11-2014

MATERIAL SPECIFICATIONS

Webbing:                                                 Polyester; 5,000 lb min. static strength
D-rings:                                                    Plated alloy steel; 5,000 lb min. static strength
Buckles and Adjusters:                         Plated alloy steel; 3,372 lb min. static strength

PERFORMANCE SPECIFICATIONS

Static Strength:                                      3,600 lb min.
ANSI User Capacity:                            130 to 310 lb max.
OSHA User Capacity:                           130 to 425 lb max.

  • 7023QC - UniFit (S, M, L)
Instruction Manual
Declaration of Conformity
Declaration of Conformity (CSA)
Sell Sheet/Brochure
Harness Sizing Chart

COMPLIANT WITH:

ANSI Z359.11-2014
OSHA 1926.502 and 1910.66
CSA Z259.10-2018
