The Story

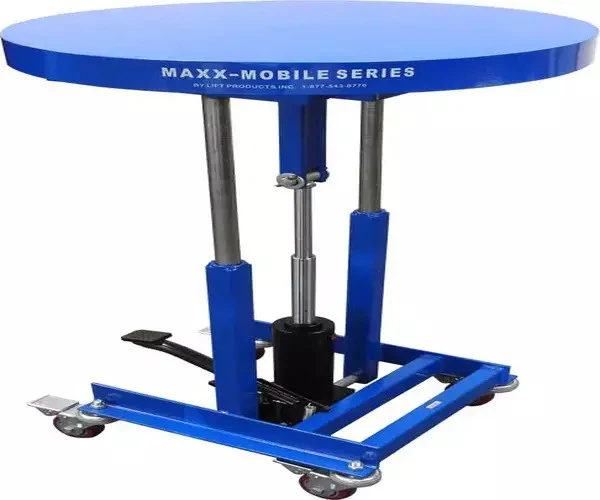

MXHR Work Positioners
Adjustable work positioners reduce strain and overexertion by positioning the work load at the height preferred by the user. A telescoping shaft has a safety lever that enables the user to select the most convenient height. The platform can be set at various heights and rotated a full 360°.
The MXHR series of work positioners adjust the height of the platform by use of an manual hydraulic foot pump. This allows the user to adjust the height of the platform even under load weight. A secondary foot pedal is attached to a release valve and smoothly lowers the platform as hydraulic fluid leaves the cylinder.
Four all swivel casters with caster brakes provide a stable and mobile base for the work positioner. A rotation brake can be enabled to secure the platform.
Standard Features
-
360° Rotating Top
-
Rotation Brake
-
3"ø poly casters
-
All swivel casters
-
Caster brakes
-
Manual foot pump
-
Lowering release pedal
-
Adjust under load
-
Hydraulic cylinder
-
Small footprint
-
Low maintenance
Specifications
| Model | Vertical Travel |
Height | Capacity | Rotation | Platform Size |
# of Pumps |
Weight | |
|---|---|---|---|---|---|---|---|---|
| Down | Up | |||||||
| MXHR20A | 10" | 19.75" | 29.75" | 440 lbs | 360° | 23.5"ø | 40 | 85 lbs |
| MXHR20B | 14" | 27.5" | 41.5" | 440 lbs | 360° | 23.5"ø | 60 | 90 lbs |
