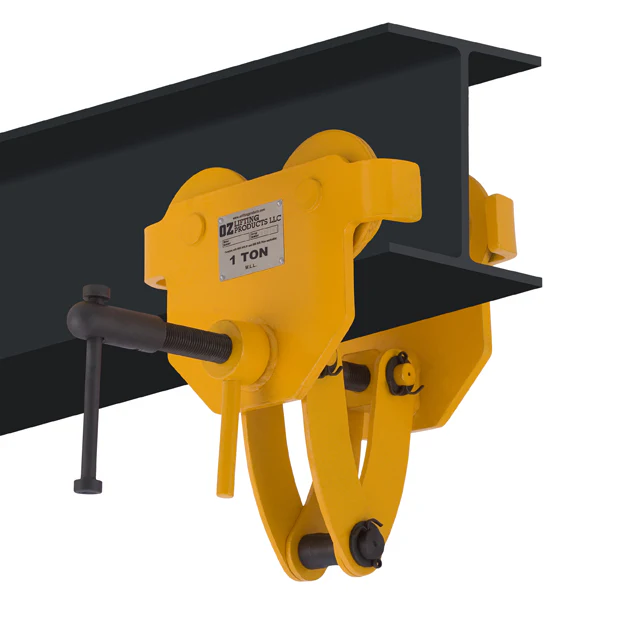

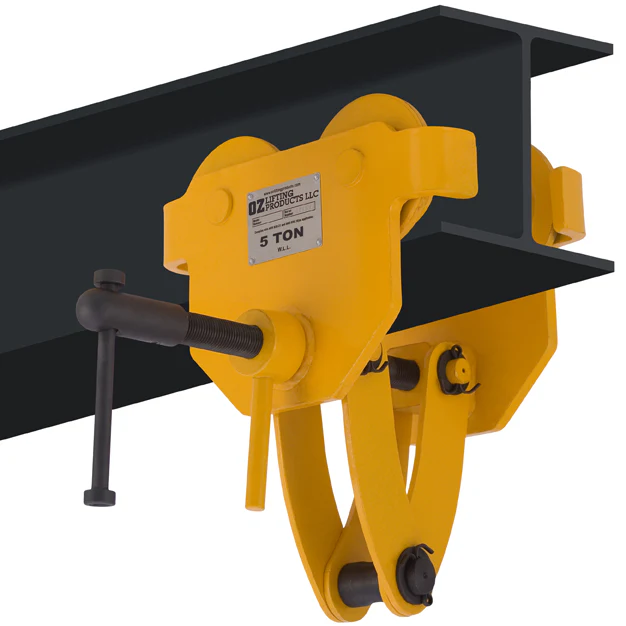

OZ Lifting Quick Adjust Trolley
The OZ Lifting quick adjust trolley is designed for super quick attachment to most I, S, and W beams. The trolley features a safety handle lock for added protection and is available in lifting capacities ranging from 0.5 tons to 10 tons. The trolley is designed for use with manual or powered hoists.
FEATURES
- Lightweight, robust construction.
- Super-quick adjustment to most I, S, and W-Beams (see measurements below)
- Safety handle lock
- Durable baked-enamel paint protection
- Precision ball bearing trolley wheels
- Anti-drop plate
- Stainless steel ID tag
- Individual test certificate and serial number
Standards – CE, ASME B30.11, ASME B30.16
(for use with manual or powered hoists)
Specifications
| OZ05QAT | OZ1QAT | OZ2QAT | OZ3QAT | OZ5QAT | OZ10QAT | ||
| Safe Working Load (lbs) | 1,000 | 2,000 | 4,000 | 6,000 | 10,000 | 20,000 | |
| Adjustable Flange Width (in) | 3.63-7.12 | 2.48-8.27 | 2.99-8.27 | 2.99-8.27 | 3.94-12.01 | 6.89-12.01 | |
| Max Flange Thickness (in) | 1.44 | 2 | 2.17 | 1.42 | 3.07 | 2.13 | |
| Dimensional Information (in) | A | 11.75 | 13.98 | 14.71 | 14.17 | 18.50 | 18.90 |
| B | 8.00 | 9.53 | 11.06 | 12.91 | 14.84 | 17.91 | |
| C | .75 | .88 | .88 | .97 | 1.11 | 1.65 | |
| (min-max) | D | 5.87-7.12 | 5.75-7.22 | 6.06-7.22 | 6.35-7.97 | 8.81-10.61 | 9.00-10.51 |
| Minimum Curve Radius (ft) | 3.28 | 3.28 | 3.61 | 4.26 | 4.60 | 5.57 | |
| Net Weight (lbs) | 13 | 25 | 38 | 57 | 102 | 205 |
*Dimensions are for reference only and subject to change without notice.
WHEEL DIMENSIONS
| OZ05QAT | OZ1QAT | OZ2QAT | OZ3QAT | OZ5QAT | OZ10QAT | ||
| E (in) | 3.22 | 4.02 | 5.00 | 5.79 | 6.30 | 7.34 | |
| F (in) | 2.28 | 2.96 | 3.55 | 4.34 | 4.81 | 5.96 |
