Petzl Am’D H-Frame Carabiner

Petzl Am’D H-Frame Carabiner

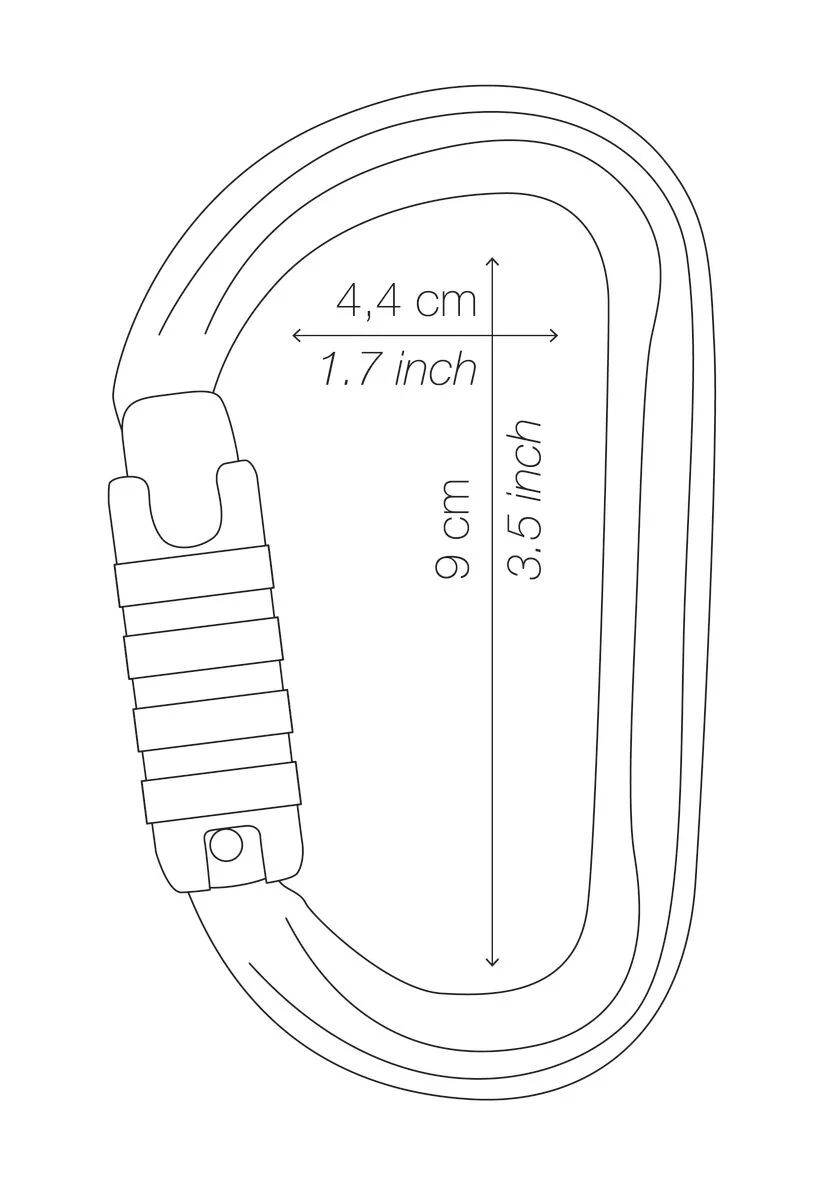

The Am’D lightweight asymmetrical carabiner is made of aluminum. It has a D shape particularly suited for connection to diverse equipment such as descenders or positioning lanyards. Its fluid interior design and Keylock system facilitate handling. The Am’D carabiner is available in three locking systems: automatic TRIACT-LOCK or BALL-LOCK system, or the manual SCREW-LOCK system. Am'D may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Downloads:

Product Data

Declaration of Conformity EU

• M34ASLy-AM'D SL
• M34ABLy-AM'D BL
• M34ATLy-AM'D TL

Maintenance Tips



---

Key Features:

• D shape is particularly suited for connection to equipment such as descenders or positioning lanyards.

• Aluminum carabiner is light, reducing the weight of equipment the worker at height needs to carry.

• May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

• Easier handling:

  • Fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner.
  • Keylock system to avoid any involuntary snagging of the carabiner.

• H-shaped cross-section:

  • Ensures an improved strength-to-weight ratio.
  • Protects markings from abrasion.

• Available in three different locking systems:

  • TRIACT-LOCK: automatic locking with triple-action gate opening.
  • BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator.
  • SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked.

• Also available in black (TRIACT-LOCK and SCREW-LOCK versions) and gold (TRIACT-LOCK and BALL-LOCK versions).

---

Specifications:

• Material(s): Aluminum
• Certification(s): CE EN 362, 12275 type B, EAC, NFPA 2500 Technical Use, XF 494 : FZL-G-Q, GB/T 23469 / B

---

References:

Carabiner Variants and Specifications

References	M34A TL	M34A BL	M34A SL	M34A TLN	M34A SLN	M34A TLY	M34A BLY
Weight	75 g	75 g	70 g	75 g	70 g	75 g	75 g
Locking system	TRIACT-LOCK	BALL-LOCK	SCREW-LOCK	TRIACT-LOCK	SCREW-LOCK	TRIACT-LOCK	BALL-LOCK
Color(s)	Gray	Gray	Gray	Black	Black	Gold	Gold
Major axis strength	27 kN	27 kN	27 kN	27 kN	27 kN	27 kN	27 kN
Minor axis strength	8 kN	8 kN	8 kN	8 kN	8 kN	8 kN	8 kN
Open gate strength	7 kN	7 kN	7 kN	7 kN	7 kN	7 kN	7 kN
Gate opening	24 mm	25 mm	25 mm	24 mm	25 mm	24 mm	25 mm
Guarantee	3 years	3 years	3 years	3 years	3 years	3 years	3 years
Inner Pack Count	1	1	1	1	1	1	1
