Petzl COEUR PULSE 12 mm

Petzl Coeur Pulse 12 mm

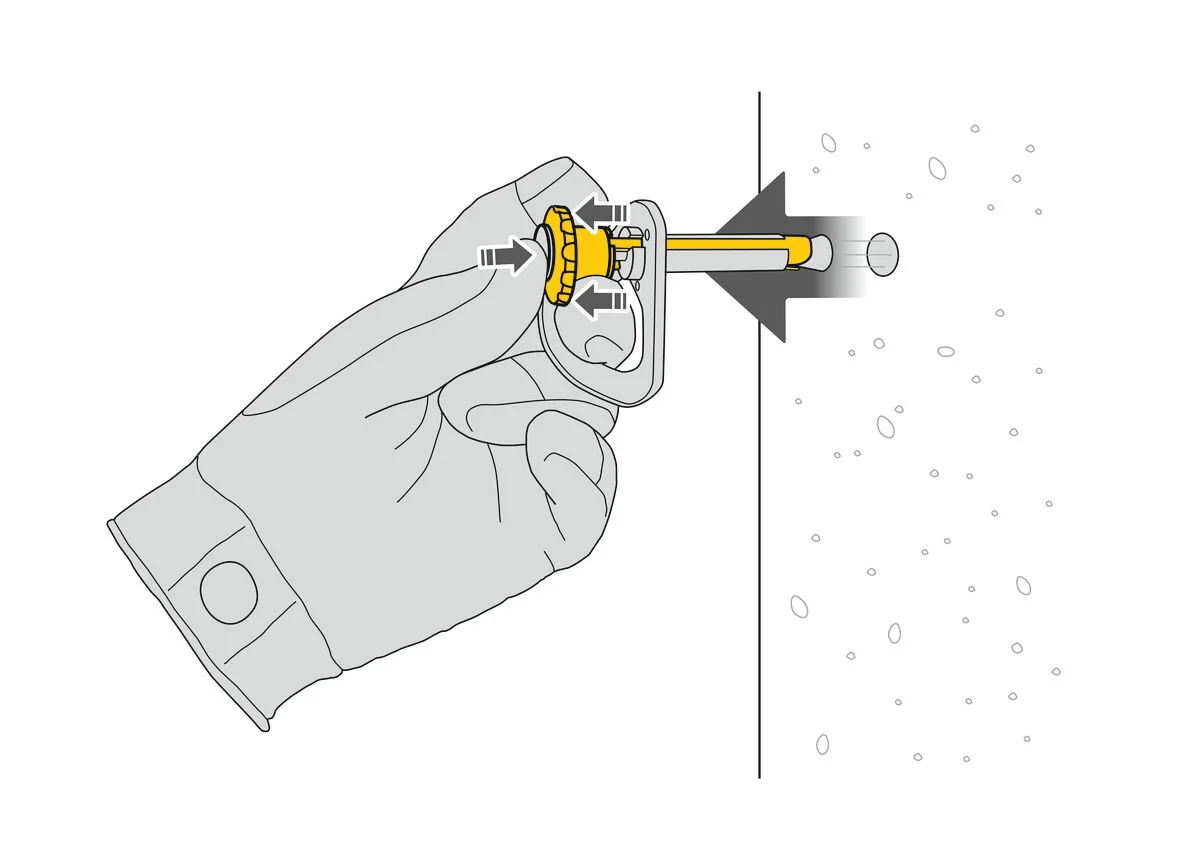

The COEUR PULSE 12 mm is a removable, high-quality stainless steel anchor that can be installed and removed for reuse very simply and rapidly without tools. The locking function limits the risk of accidental removal. The COEUR hanger can rotate once installed and when laterally loaded during use, allowing it to better align with the systems in place.



Downloads:

Product Data

Declaration of Conformity EU

Declaration of Conformity UKCA

---

Key Features:

• Quick and simple to install and remove without tools, allowing for reuse.
• Locking function reduces the risk of accidental removal.
• Locking knob is easy to handle, even with gloves.
• Wide, ergonomic hanger opening facilitates carabiner clipping.
• COEUR hanger rotates to align with the pull of the connector.

---

Specifications:

• Material(s): Stainless steel, plastic
• Certification(s): CE EN 795 B, CE EN 959, TS 16415, GB 30862/B, UKCA

---

References:

• Reference: G037BA00
• Diameter: 12 mm
• Weight: 140 g
• Drilling depth: 6,5 cm
• Drilling diameter: 12 mm
• Shear strength in 50 MPa concrete: > 25 kN
• Pull-out strength in concrete 50 MPa: > 20 kN
• Shear strength in 25 MPa concrete: 25 kN
• Pull-out strength in concrete 25 MPa: 20 kN
• Guarantee: 3 years
• Inner Pack Count: 1
