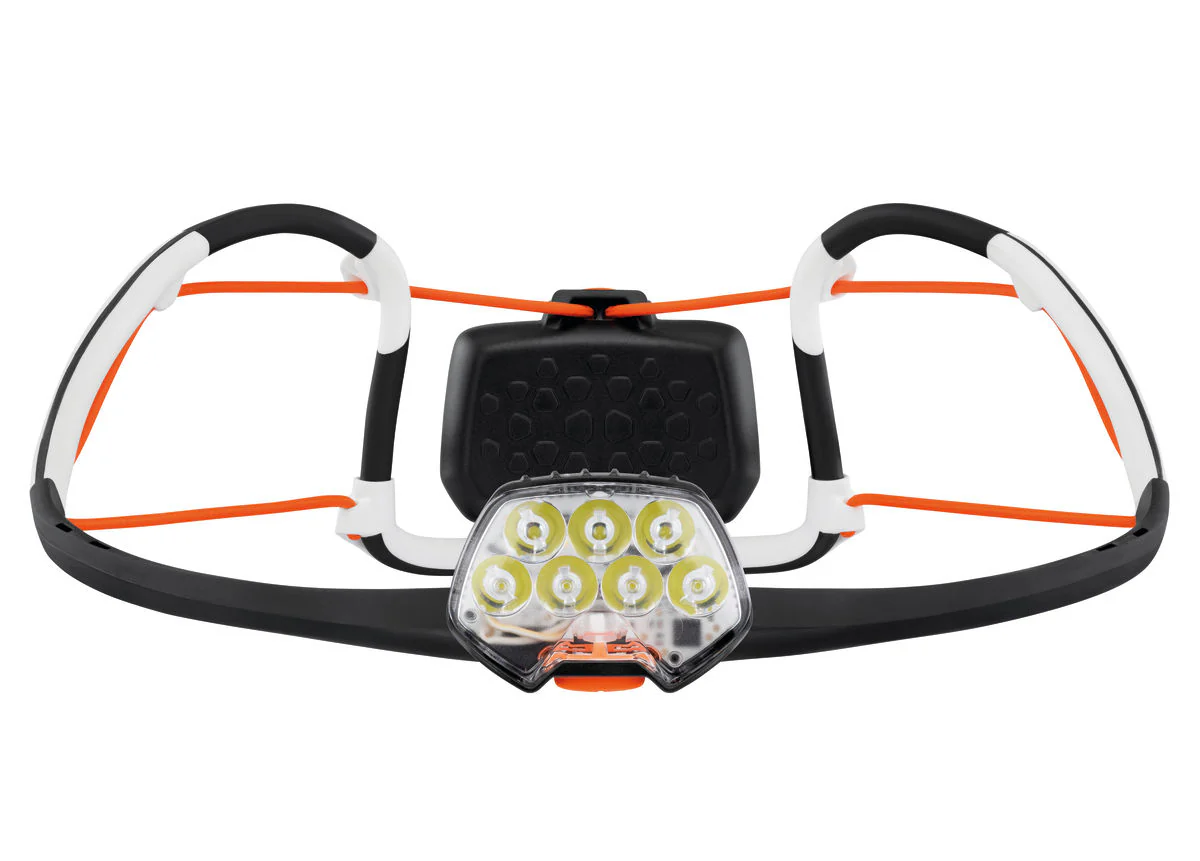

Petzl IKO® CORE headlamp 500lm

Petzl IKO® CORE headlamp 500lm

Lightweight, ergonomic, rechargeable headlamp with AIRFIT® headband. 500 lumens

Bringing together multiple technologies! The IKO® CORE rechargeable headlamp combines multiple technologies to provide 500 lumens at a total weight of only 79 g. Featuring an AIRFIT® headband, an ultra-thin lamp body, and an energy source worn in the rear, the headlamp is balanced and comfortable enough to be imperceptible. It is versatile and can also be worn around the neck or transformed into a lantern using the storage pouch. It can fold flat to reduce bulk, making it practical for all outdoor activities. With its HYBRID CONCEPT design, IKO® CORE comes with the CORE rechargeable battery but also works with three AAA/LR03 batteries (not included).



Downloads:

Technical Notice IKO-CORE

Technical Notice Headlamps Accessory Compatibility

Declaration of Conformity EU

Declaration of Conformity UKCA

Maintenance Tips

---

Key Features:

• 500 lumens of brightness at just 79 g total weight
• Innovative AIRFIT® headband for exceptional comfort and balance
• Rechargeable CORE battery with micro USB port and HYBRID CONCEPT compatibility
• Multiple beam types and lighting levels for varied outdoor applications
• Transforms into a lantern and folds flat for easy storage

Ergonomic & Comfortable

• AIRFIT® headband (Petzl patent) offers a balanced and nearly imperceptible fit

• Semi-rigid, water-repellent band resists sweat/rain and improves air circulation

• Ultra-thin lamp front with battery at the back for even weight distribution

• Easy rear adjustment

Visual Performance

• 500 lumens of power at only 79 g

• Homogeneous light from multiple LEDs

• Two beam types (wide and mixed) and three white lighting levels (proximity, movement, distance)

• Single-button control for quick access

Rechargeable & Sustainable

• CORE battery charges via micro USB

• CORE battery = ~900 disposable batteries over its lifespan

• HYBRID CONCEPT: works with CORE or 3x AAA batteries (500 lm with CORE, 350 lm with AAA)

Versatile Use

• Wear on head/neck, place on surface, or mount to objects like poles or trees

• Storage pouch doubles as lantern

• Reflective rear elements for night visibility

• Battery indicator shows charge when turning on/off

• Two LOCK modes to prevent accidental activation

• Folds flat for compact storage

• Compatible with all Petzl helmets

---

Specifications:

• Brightness: 500 lumens (ANSI FL 1 STANDARD)
• Weight: 79 g
• Beam pattern: Wide or mixed
• Energy: 1250 mAh CORE rechargeable battery (included)
• Charging time: 3.5 h
• Battery compatibility: Alkaline, lithium, or Ni-MH rechargeable
• Watertightness: IPX4 (weather-resistant)
• Certification(s): CE, UKCA

---

References:

• References: E104BA00
• Color(s): BLACK
• Guarantee: Lamp: 5 years, CORE rechargeable battery: 2 years or 300 charging cycles

Lighting performance Lighting performance with rechargeable CORE rechargeable battery Lighting performance as defined by the ANSI/PLATO FL 1 protocol



Lighting Color	Lighting Levels	Brightness	Distance	Burn Time	Reserve Lighting
White	MAX BURN TIME	6 lm	10 m	100 h	-
White	STANDARD	100 lm	45 m	9 h	2.5 h
White	MAX POWER	500 lm	100 m	2.5 h	4.5 h

Lighting performance with 3 AAA / LR03 batteries Lighting performance as defined by the ANSI/PLATO FL 1 protocol



Lighting Color	Lighting Levels	Brightness	Distance	Burn Time	Reserve Lighting
White	MAX BURN TIME	6 lm	10 m	100 h	-
White	STANDARD	100 lm	45 m	8 h	20 h
White	MAX POWER	350 lm	80 m	2.5 h	50 h
