Petzl Spin L1D

Petzl Spin L1D

Openable even when attached to the anchor, the SPIN L1D pulley is designed to be used in conjunction with a descender for maximum simplicity in setting up a deviation for a heavy load. The faceted sheave only rotates in one direction, providing excellent efficiency when hauling and adding friction zones for the rope for additional braking when lowering. The swivel facilitates handling, allowing the pulley to be oriented under load, and direct connection of carabiners, ropes, or slings.

Downloads:

Product Data

Declaration of Conformity EU

Declaration of Conformity UKCA

Maintenance Tips



---

Key Features:

• Designed for use with a descender to simplify heavy load deviation and haul systems for work at height or rescue.

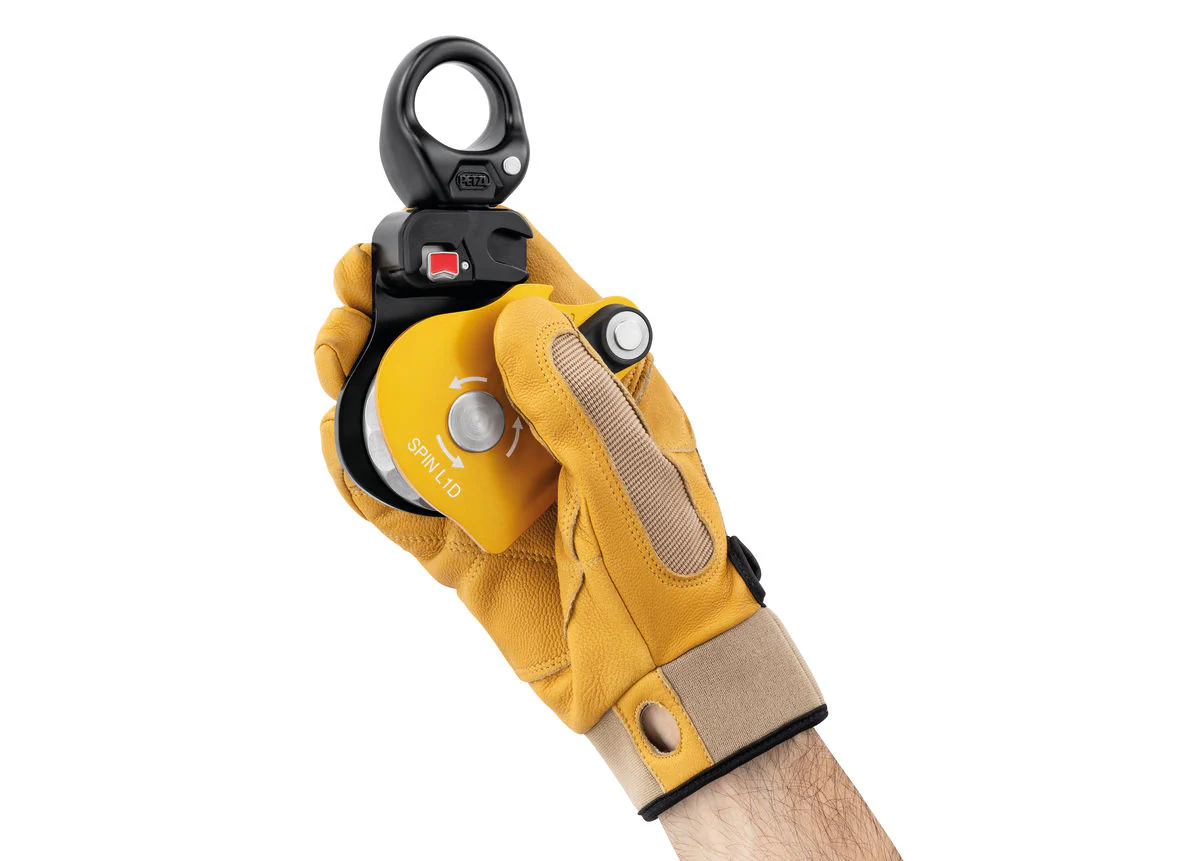

• Triple-action opening of the moving side plate allows quick and easy operation, even with gloves.

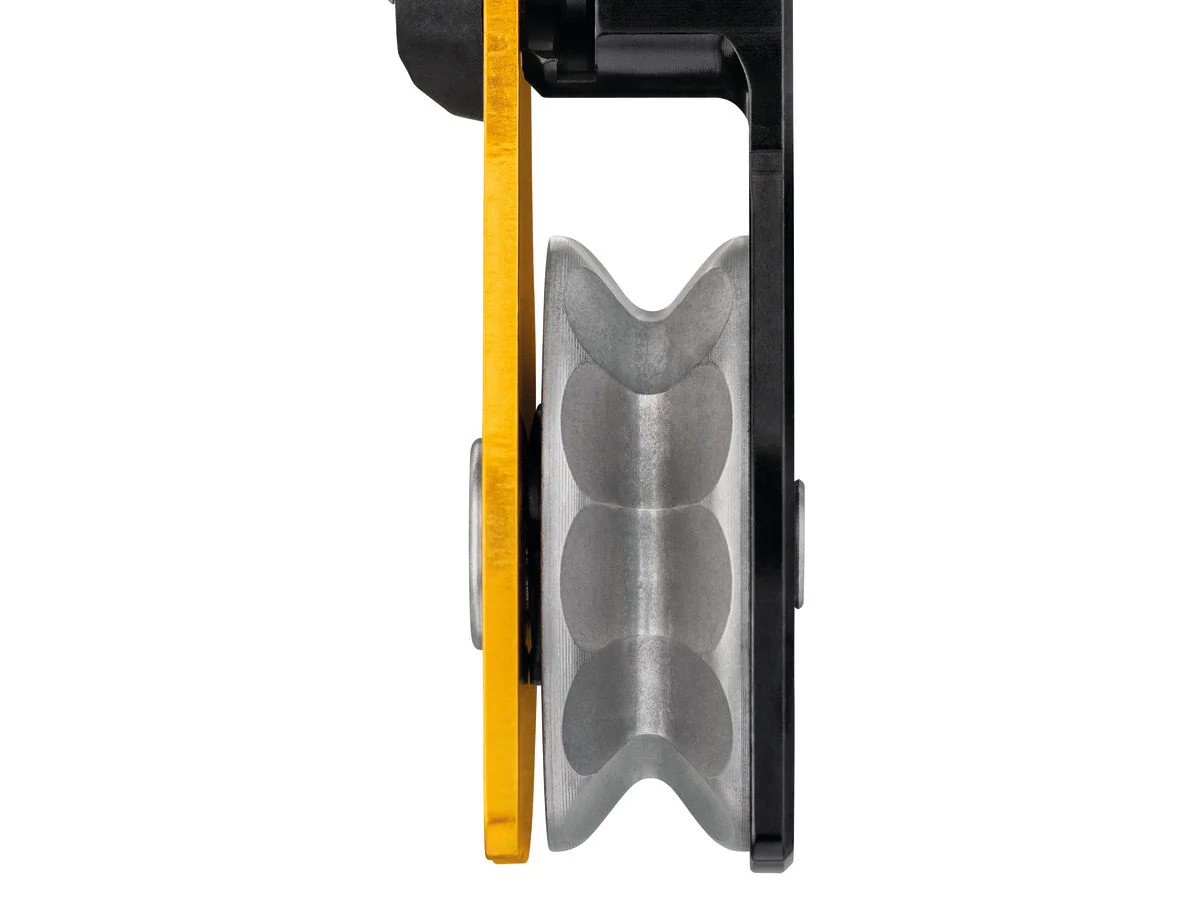

• Faceted sheave rotates in one direction for excellent hauling efficiency and added friction zones for controlled lowering.
• Swivel enables pulley orientation under load and direct connection of carabiners, ropes, or slings.
• Red mark provides a visual warning when the moving side plate is unlocked.



---

Specifications:

• Weight: 425 g
• Certifications: CE*, NFPA 2500 Pulley General Use, UKCA (*CE based on EN 12278 standard)
• Material(s): Aluminum, stainless steel, nylon
• Rope Diameter: Min. 8 mm, Max. 13 mm
• Sheave Type: Sealed ball bearings
• Sheave Diameter: 40 mm
• Maximum Working Load: 3 x 2 = 6 kN
• Breaking Strength: 36 kN
• Efficiency: 93%

---

References:

• Reference Code: P001AA00
• Color: Yellow
• Guarantee: 3 years
• Inner Pack Count: 1
