Petzl Spin L2

Petzl Spin L2

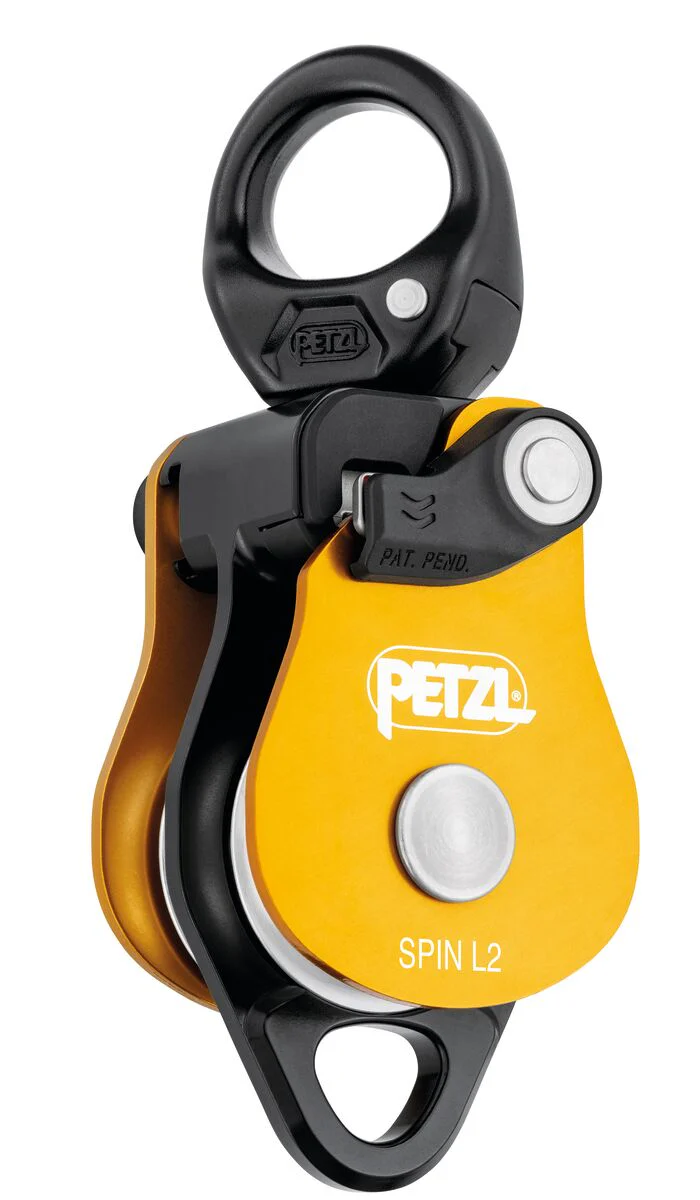

Openable even when attached to the anchor, the SPIN L2 is a double pulley designed for maximum simplicity when setting up hauling systems or tyroleans. The two parallel-mounted sheaves and auxiliary attachment point allow the pulley to be used for setting up various types of complex haul systems. The large diameter sheaves mounted on sealed ball bearings provide excellent efficiency. The swivel facilitates handling, allowing the pulley to be oriented under load, and direct connection of carabiners, ropes, or slings.



Downloads:

Product Data

Declaration of Conformity EU

Declaration of Conformity UKCA

Maintenance Tips

---

Key Features:

• Triple-action opening of the moving side plate allows quick and easy setup, even with gloves.
• The rope can be installed while the device is connected to the anchor.
• Red mark provides a visual warning when the moving side plate is unlocked.
• Large diameter sheaves mounted on sealed ball bearings ensure optimal efficiency.
• Swivel accepts up to three carabiners and allows direct connection of ropes or slings for easy handling.

---

Specifications:

• Weight: 480 g
• Certification(s): CE EN 12278, NFPA 2500 Pulley General Use, UIAA, XF 494 : FZL-H-T9.5/13
• Material(s): Aluminum, stainless steel, nylon
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave type: Sealed ball bearings
• Sheave diameter: 38 mm
• Maximum working load: 8 kN (3 kN per strand, more information in the Instructions for Use)
• Breaking strength: 36 kN
• Efficiency: 95%

---

References:

References	P001CA00	P001CA01
Color(s)	Yellow	Black
Guarantee	3 years	3 years
Inner Pack Count	1	1
