Petzl Vulcan Carabiner

Petzl Vulcan Carabiner

VULCAN is a high-strength steel carabiner designed for use in difficult environments. The large-capacity asymmetrical shape is ideal for setting multiple anchors. The VULCAN carabiner is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system. VULCAN TRIACT-LOCK is available in European or international versions. VULCAN can be connected to the CAPTIV bar to favor positioning of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Downloads:
Technical Notices

• OXAN-VULCAN International
• OXAN-VULCAN Europe

Declaration of Conformity EU

• M073AAXX-VULCAN SCREW LOCK
• M073BAXX-VULCAN TRIACK LOCK
• M073CAXX-VULCAN TRIACT LOCK U

Maintenance Tips



---

Key Features:

• High-strength steel carabiner for use in harsh environments, particularly suitable for setting up multiple anchors

• Easier handling:

  • Fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
  • Keylock system to avoid any involuntary snagging of the carabiner

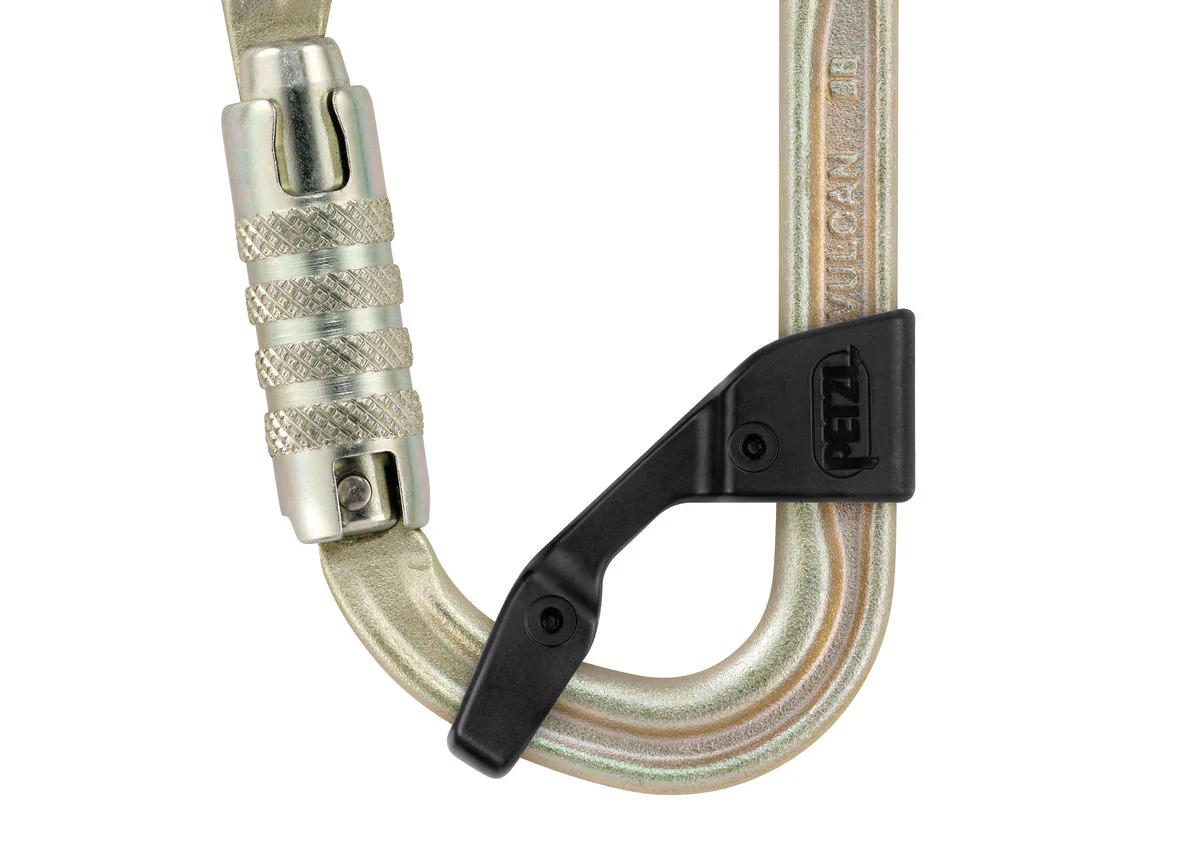

  • May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to keep it integrated with the device, and to limit the risk of it flipping

• H cross-section:

  • Ensures an optimal strength/weight ratio
  • Protects markings from abrasion

• Two locking systems available:

  • TRIACT-LOCK: automatic locking with triple-action gate opening
  • SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

• Available in European or international versions

Also available in black

---

Specifications:

• Material(s): Steel



---

References:

References	M073BA00	M073AA00	M073CA00	M073CA01	M073AA01
Locking system	TRIACT-LOCK	SCREW-LOCK	TRIACT-LOCK	TRIACT-LOCK	SCREW-LOCK
Certification(s)	CE EN 362, NFPA 2500 General Use, EAC, GB/T 23469-2009 XF 494-2004	CE EN 362, NFPA 2500 General Use, EAC, GB/T 23469-2009 XF 494-2004	CE EN 362, ANSI Z359.12, NFPA 2500 General Use, CSA Z259.12, EAC	CE EN 362, ANSI Z359.12, NFPA 2500 General Use, CSA Z259.12, EAC	CE EN 362, NFPA 2500 General Use, EAC, GB/T 23469-2009 XF 494-2004
Color(s)	Gold	Gold	Gold	Black	Black
Major axis strength	45 kN	45 kN	45 kN	45 kN	45 kN
Minor axis strength	16 kN	16 kN	16 kN	16 kN	16 kN
Open gate strength	18 kN	18 kN	18 kN	18 kN	18 kN
Gate opening	28 mm	29 mm	26 mm	26 mm	29 mm
Weight	245 g	235 g	265 g	265 g	235 g
Guarantee	3 years	3 years	3 years	3 years	3 years
Inner Pack Count	1	1	1	1	1
