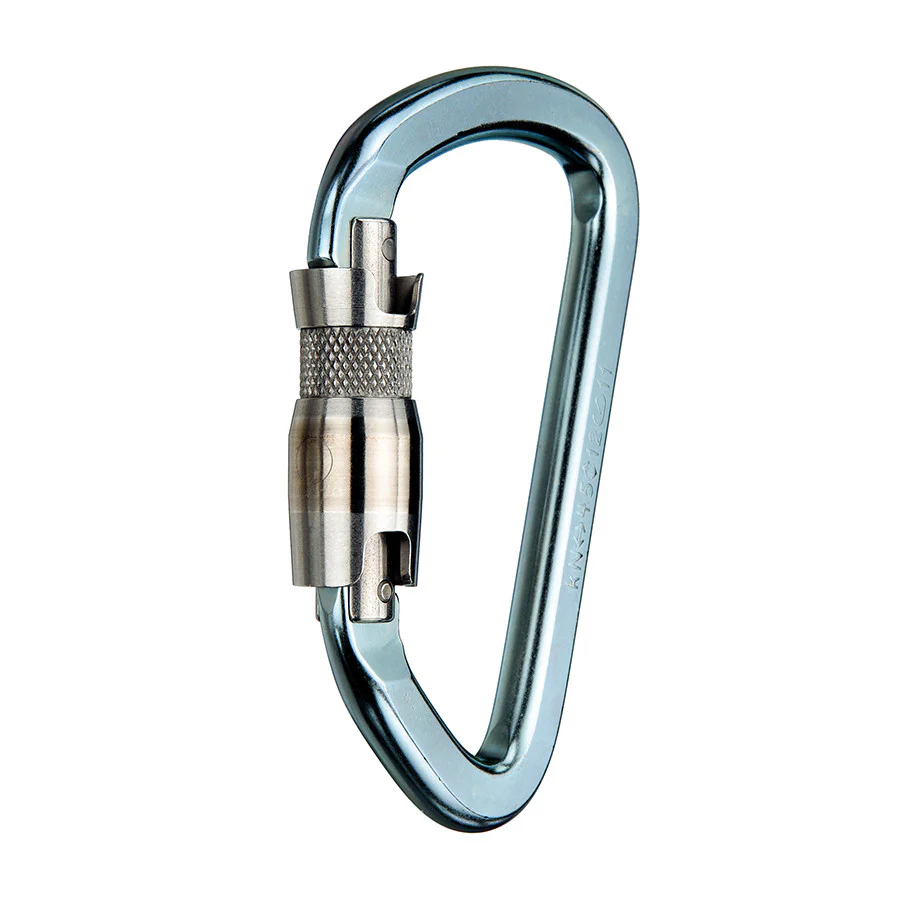

PMI SMC Triguard Auto-Lock Lite Steel Carabiner – NFPA

The SMC Triguard Auto-Lock Lite Steel Carabiner – NFPA is a lite alloy steel carabiner with a triple action gate for maximum security. The triguard gate is easily opened with one hand and just as easily returned to a fully locked position.

This carabiner has a stainless steel spring, pin, and sleeve for smooth operation, and its “D” shape provides a smooth transfer of the munter hitch when used as a belay. The SMC Triguard Auto-Lock Lite Steel Carabiner has ample volume to clip in large diameter ropes and over the rails of most litters.

---

Features

• Lite Alloy Steel Body
• Stainless Steel spring, pin, and sleeve
• NFPA 1983 (2012), G
• Berry Compliant
• Made in the USA

---

Specs

• Type: Triple Auto Lock
• MBS: 45 kN (10116 lbf)
• Weight: 7.0 oz (199 g)
• Length: 4.52" (11.5 cm)
• Width: 2.76" (7.0 cm)
• Gate Opening: 0.88" (22.4 mm)
• Major Axis: 45 kN (10116 lbf)
• Minor Axis: 12 kN (2697 lbf)
• Gate Open: 11 kN (2473 lbf)
• Material: Zinc Plated Steel Alloy
