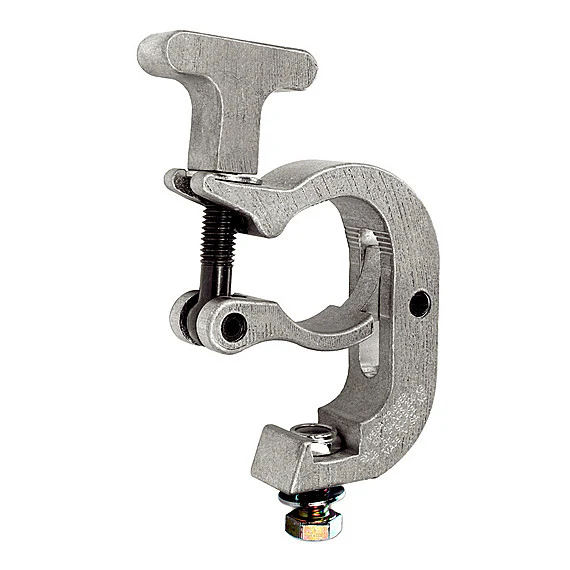

The TC Clamp will fasten from 2" OD to 1.5" OD tube. The TC Clamp has a 2-1/2" T-handle so no tools are required to fasten to the pipe. 1.25″ × 1/2"-13 TPI Grade 8 fastener, Nylock Nut and 1" diameter Belleville Spring washer are provided for connecting your load. Dimensions: 4-5/8" Tx 4"W x 1-3/16" thick. Safe Vertical Working Load 450 Pounds, (200 KG). Weight is 1.22 pounds (.55 KG)
Minimum Size
1.5" OD tube, 1.25" pipe, 1.66" OD pipe
Maximum Size
2" OD truss tube,1.5" pipe, 1.90" OD
Working Load Limit
450 Pounds
Hardware
1.25″ × 1/2" – 13 TPI Grade 8 fastener with Nylock nut.
1" Belleville spring washer.
Dimensions
4 5/8" tall x 4" wide x 1 3/16" thick
Weight
1.25 lbs.
Case Quantities
24
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The TC Clamp will fasten from 2" OD to 1.5" OD tube. The TC Clamp has a 2-1/2" T-handle so no tools are required to fasten to the pipe. 1.25″ × 1/2"-13 TPI Grade 8 fastener, Nylock Nut and 1" diameter Belleville Spring washer are provided for connecting your load. Dimensions: 4-5/8" Tx 4"W x 1-3/16" thick. Safe Vertical Working Load 450 Pounds, (200 KG). Weight is 1.22 pounds (.55 KG)
Minimum Size
1.5" OD tube, 1.25" pipe, 1.66" OD pipe
Maximum Size
2" OD truss tube,1.5" pipe, 1.90" OD
Working Load Limit
450 Pounds
Hardware
1.25″ × 1/2" – 13 TPI Grade 8 fastener with Nylock nut.
1" Belleville spring washer.
Dimensions
4 5/8" tall x 4" wide x 1 3/16" thick
Weight
1.25 lbs.
Case Quantities
24
