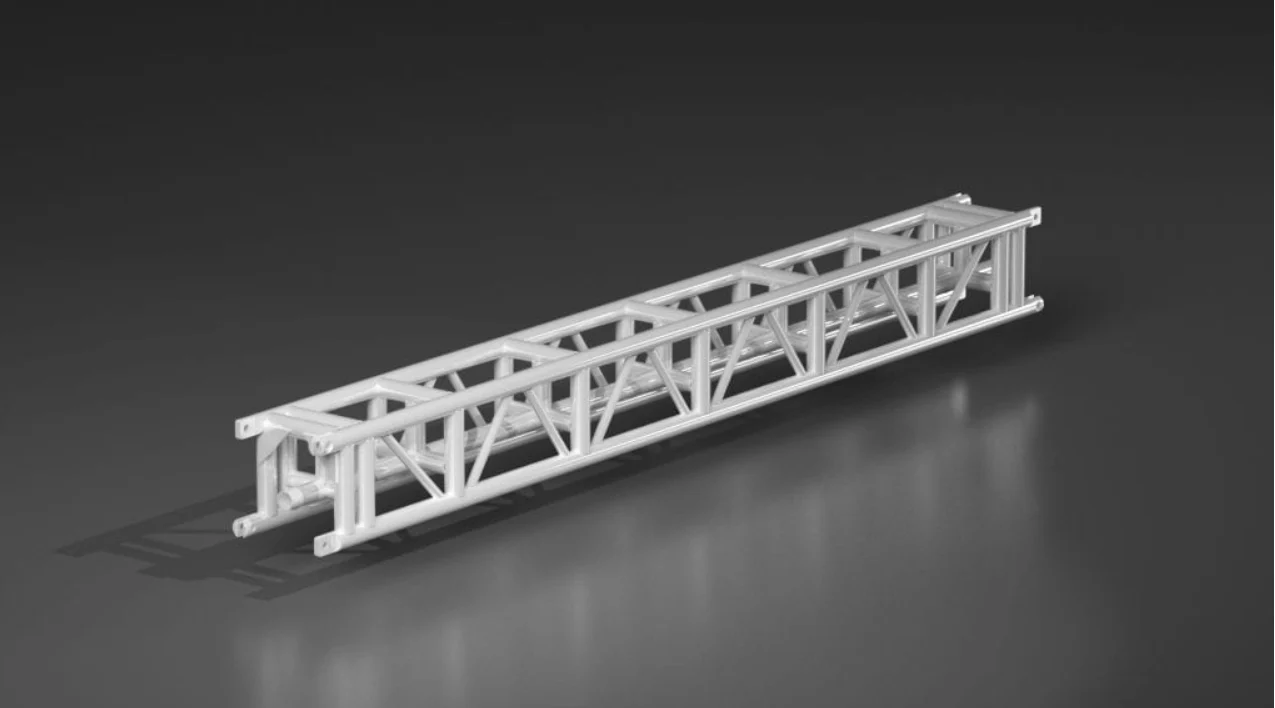

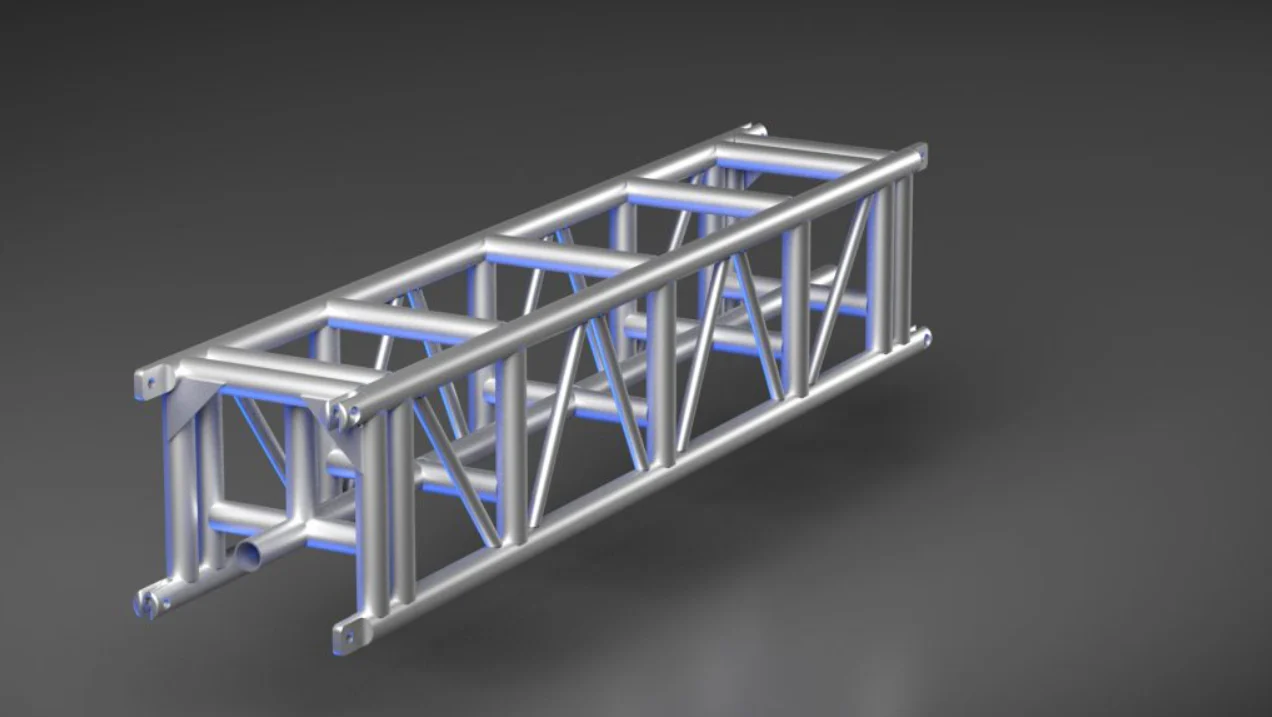

Tyler Truss T-Max 16x16

Tyler Truss T-Max 16x16



Heavy-Duty Versatility for Secure Connections

The Tyler T-Max is a robust and reliable structural component designed for heavy-duty applications requiring secure bolted connections. Engineered for maximum durability and ease of installation.



Built for versatility, the Tyler T-Max 16x16 is an ideal solution for industries demanding precision, strength, and modular functionality. Whether used in structural frameworks, construction projects, or custom installations, this product guarantees reliability with every connection.



Key Features

• Available Sizes: 12”, 16” & 20.5”
• Standard Lengths: 10’, 8’, and 5’. Custom lengths available.
• Connection Options: Bolting or vertical forkends and standard hardware connection.



Technical Specs

Model Lengths	12×12, 16×16, 20.5×20.5
Standard Connection	Bolting
Stacking Blocks	Available
Available Lengths	5-8-10'
Weight (lbs)	12: 5’ – 45 lbs., 8’ – 66 lbs., 10’ – 79 16: 5’ – 52 lbs., 8’ – 71.5 lbs., 10’ – 85.5 20.5: 5' – 57 lbs., 8' – 75 lbs., 10' – 87





Go Lighter. Go Greener. Choose T-Max.
T-Max 12×12 matches the strength of 20.5×20.5 systems over a 40 ft. span—at a fraction of the weight. Save big on freight. Lower costs, lighter loads, greener choice.









Videos and Demo Animations





Downloads Cut Sheets and Load Tables
