Vestil Manufacturing Corp Double Mast Stackers with Powered Drive and Powered Lift

Vestil Manufacturing Corp Double Mast Stackers with Powered Drive and Powered Lift

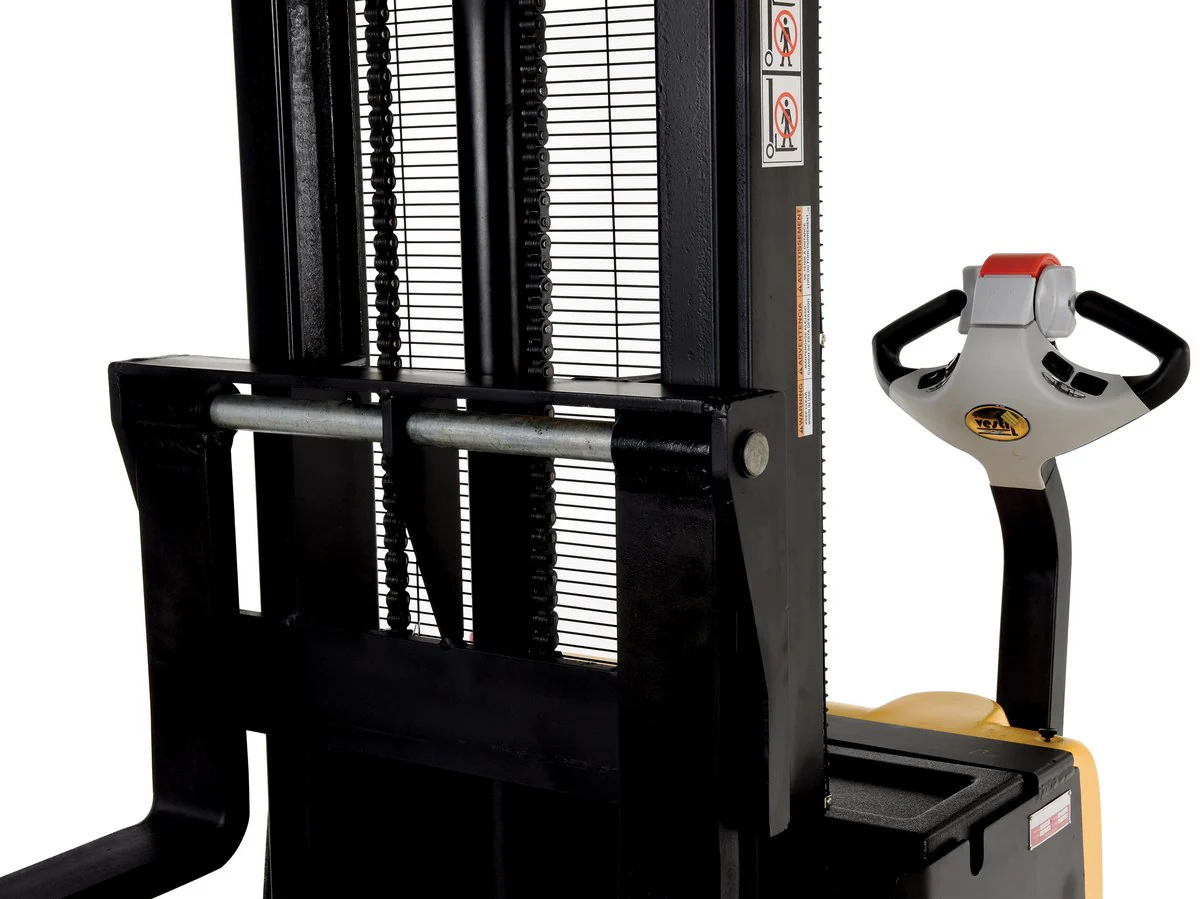

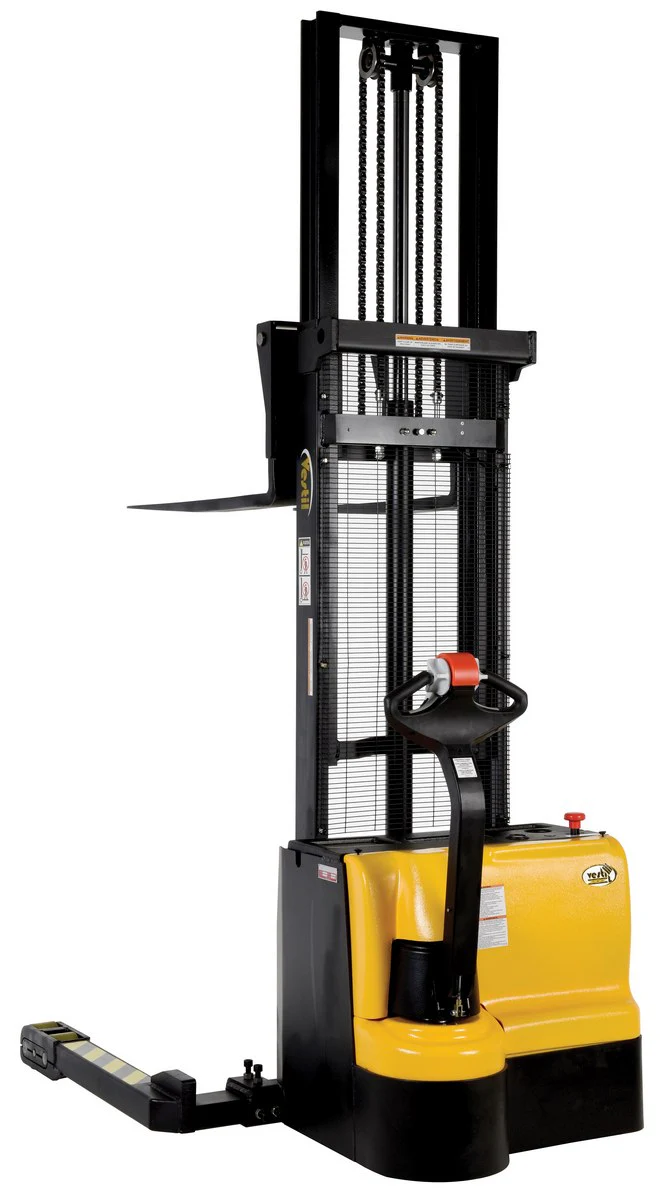

Double Mast Fully Powered Electric Stacker transports loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. Feature 1.0 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

Manuals

S3 Owners Manual

Testing Certificates

S3-125-AA

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S3-125-AA
Hydraulic Oil SDS Sheet for: S3-125-AA

Other PDF's

Double Mast Stacker Mailing Brochure
Double Mast Stacker Mailing Brochure(2)
