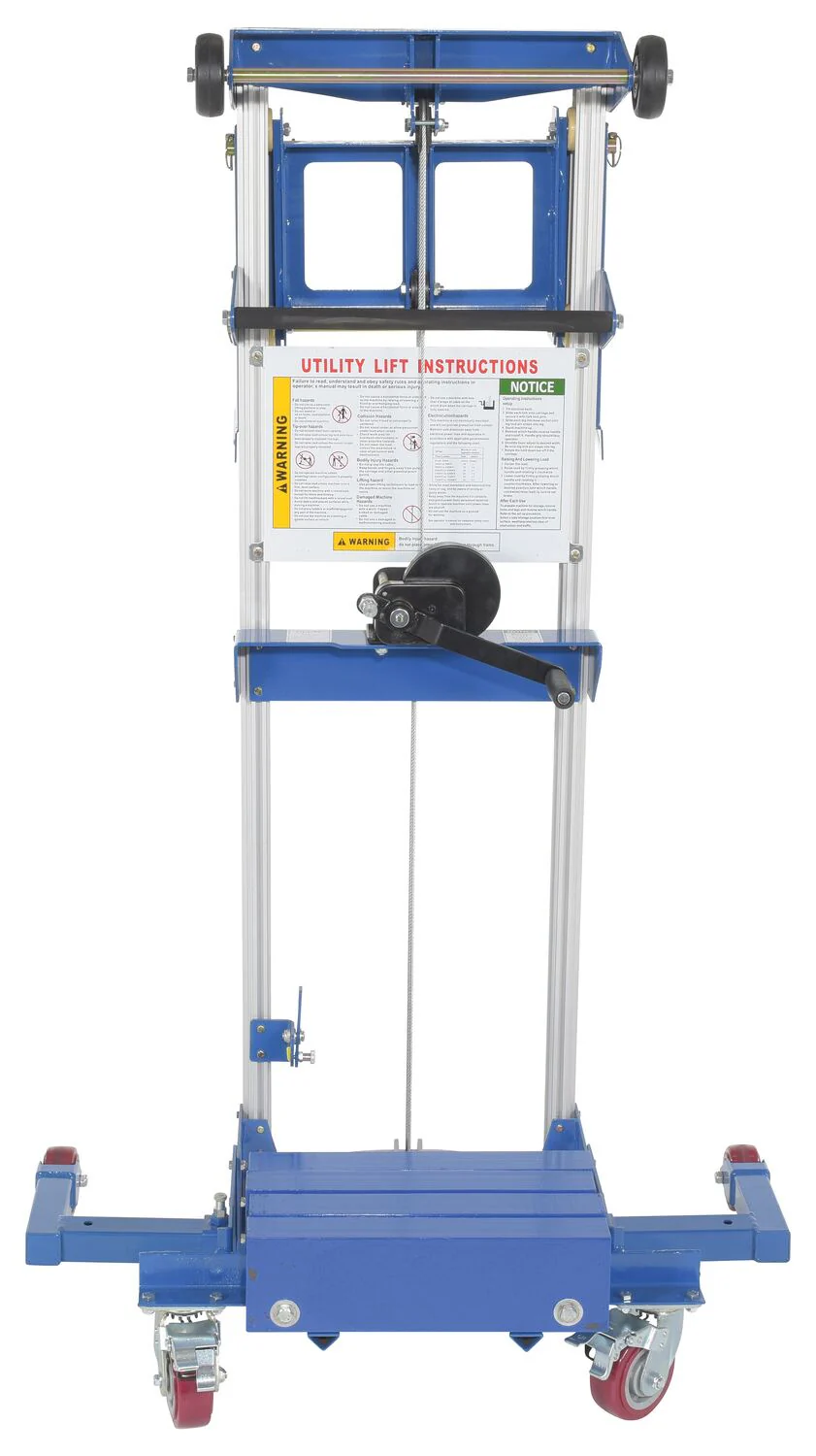

Compact lift trucks are designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. Constructed of durable steel-and-aluminum. The rugged 4" wide by 1-3/4" thick steel forks measure 22" long (20-1/2." O.D.). Operated by a hand-crank winch that features a reversible handle and a hold-down device for securing the carriage during transport. Forks raise 1" per complete hand crank rotation. The non-adjustable forks can be inverted to provide different height ranges. Two 8" non-marking rear wheels, two 2" front swivel casters. Counter balanced design has poly-on-poly wheels, (2) 5" rear swivel wheels, (2) 4" front wheels. Models ending with 'HP' and 'EHP' suffixes have extended height capabilities. These units have a 2 stage mast system and a telescoping inner mast frame, giving the user the ability to extend the forks above the height of the first mast.

Optional aluminum ladder can be retrofitted or ordered with A-LIFT. Ladder retracts into unit upright when not in use. Model A-LIFT-LAD is 20-1/2"W x 57-1/2"H, while model A-LIFT-EHP-LAD is 20-5/8"W x 69-1/2"H with 11-3/4 rung spacing. Ladder capacity is 250 lbs.

• Lightweight portable lifts are great for hundreds of applications
• Manual cable winch easily raises and lowers forks
• Counterbalance weight design keeps unit from tipping with heavy loads
• Hold-down device secures carriage during transport
