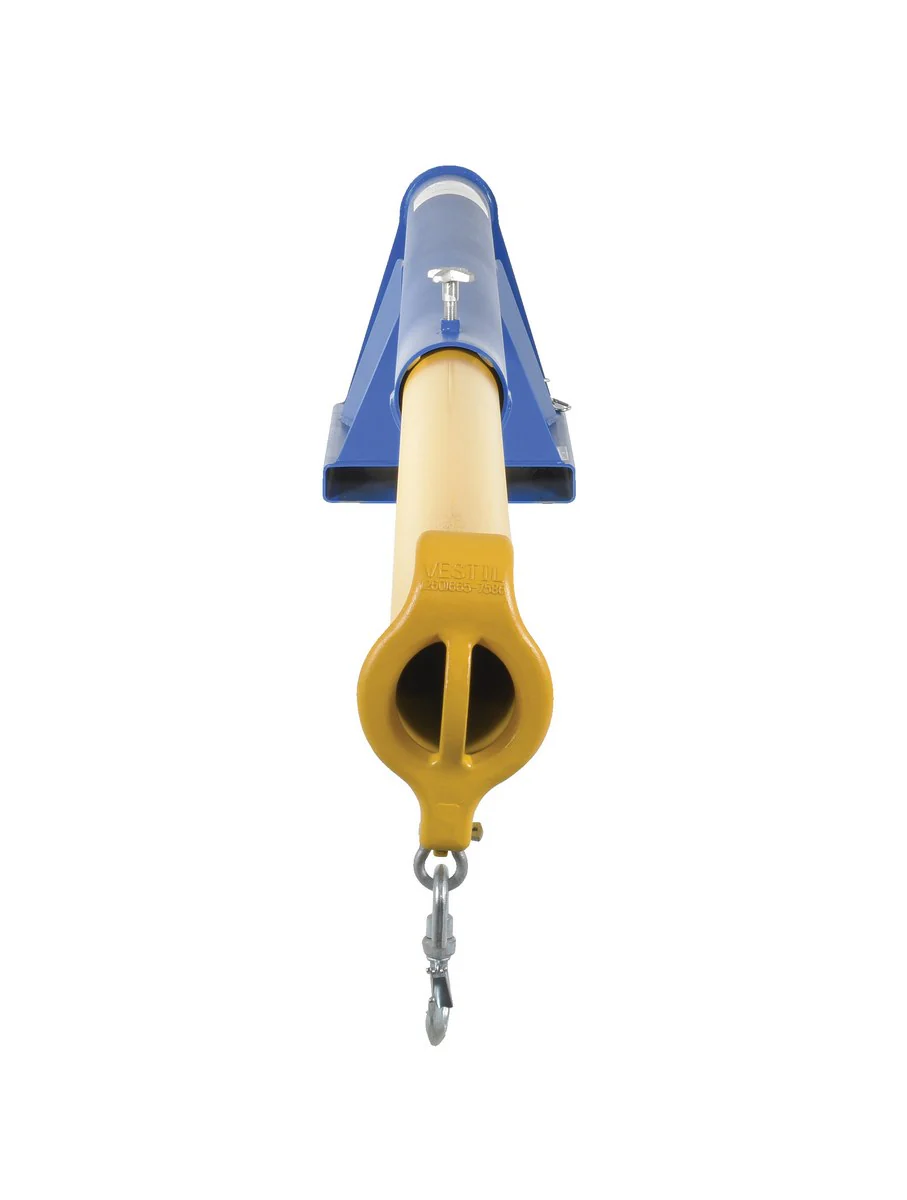

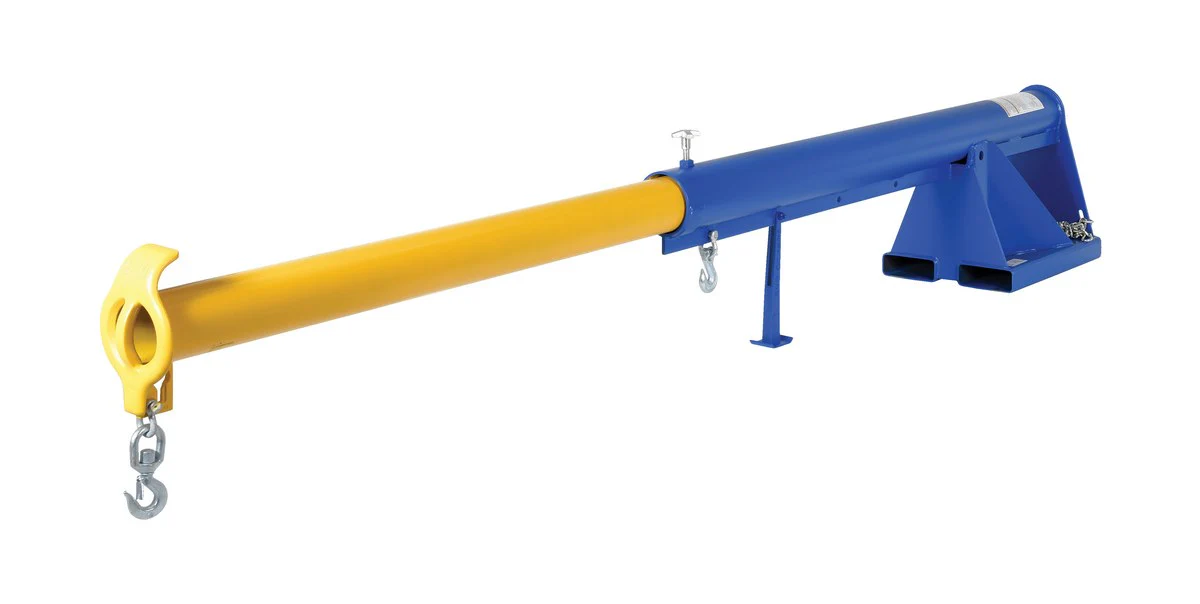

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. Telescopic units come with an infinitely adjustable locking screw (except orbit booms which features a locking detent). Fork pockets for 3,000 and 4,000 pound capacity models measure 7-1/2"W x 2-1/2"H usable. Usable fork pockets are 7-1/4"W x 2-1/4"H for 6,000 and 8,000 pound uniform capacity models. A 36" safety restraint secures the boom to the fork truck for safe operation. Each unit includes two lifting hooks.

Carriage Mount Lift Master
These booms are connected and secured to a new or existing fork truck by type 2 carriage mount. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.

Manuals

LMOwners Manual
LM-CM-EBT-46Owners Manual
LM-1T-8-24-HBEOwners Manual

Testing Certificates

LM-1T-4-11

SDS Sheets

Valve Regulated Lead-Acid Battery SDS Sheet for: LM-1T-8-24-HBE-DC

Other PDF's

Carriage Mount and Hydraulic Lift Booms Mailing Brochure
