Vestil Manufacturing Corp Lift & Tilt Carts with Sequence Select

Vestil Manufacturing Corp Lift & Tilt Carts with Sequence Select

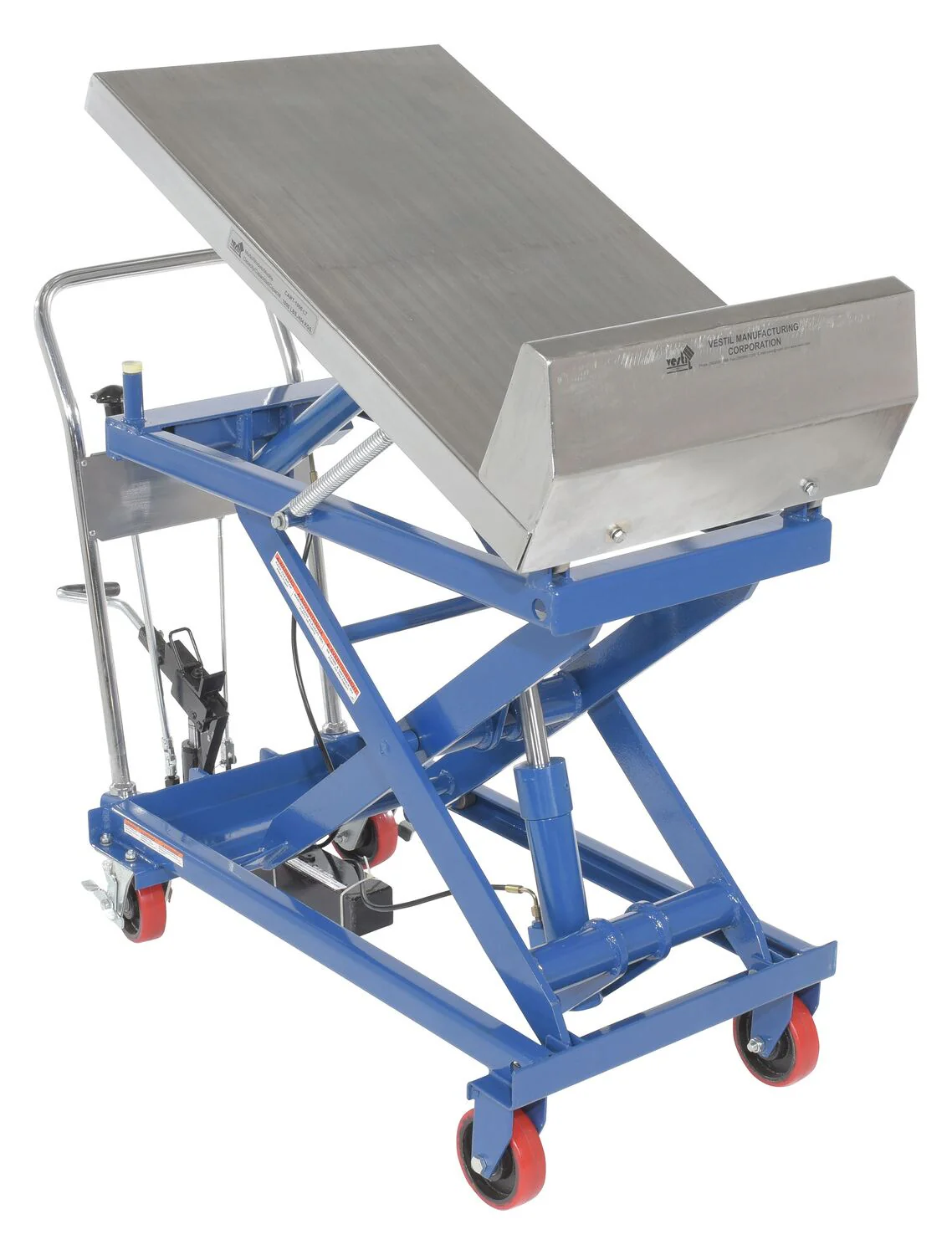

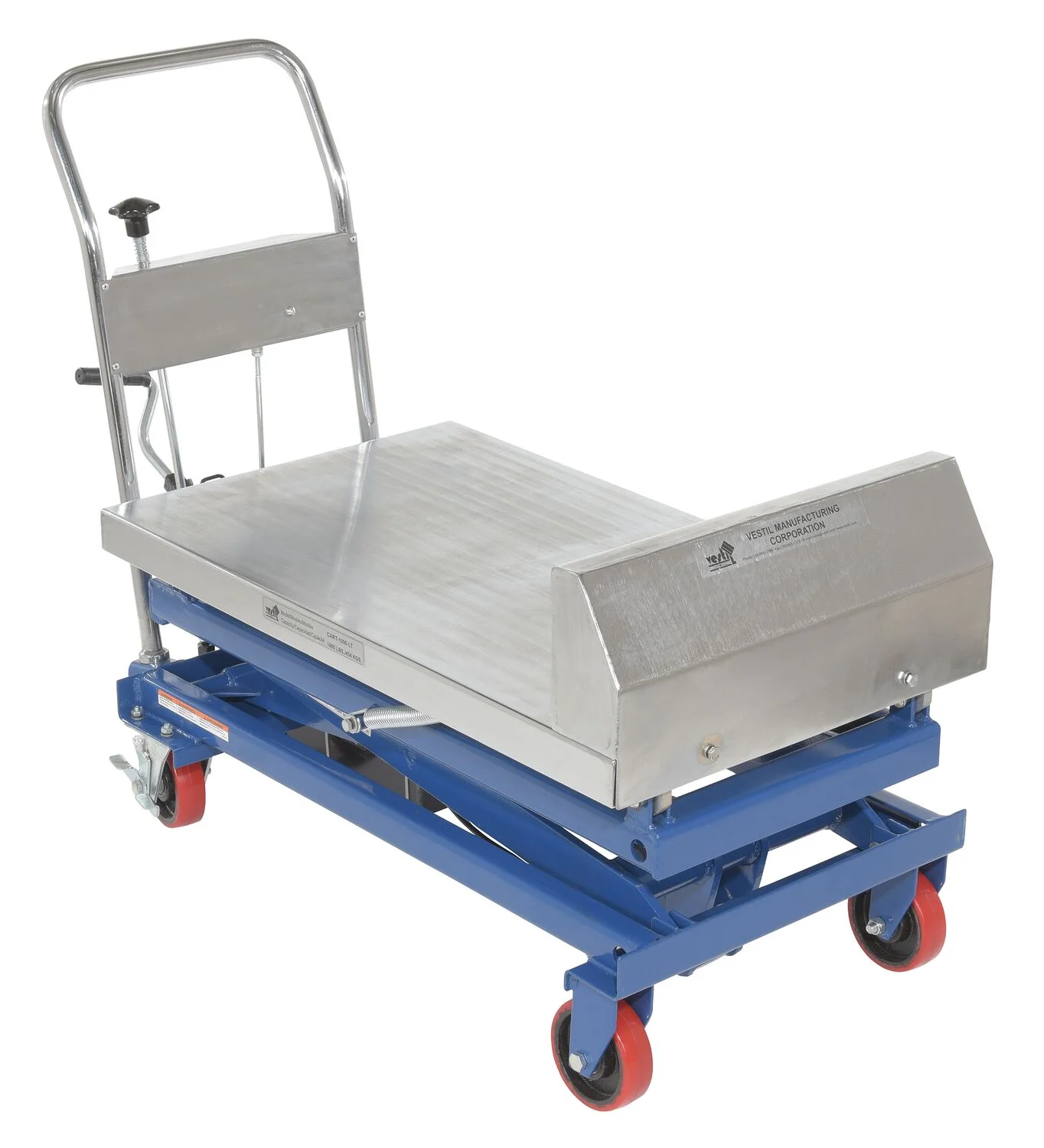

Models CART-500-LT, CART-1000-LT, and CART-1000-LT-PSS have a unique design which allows the user to RAISE and TILT materials to an ergonomic position for better posture and operator comfort. The manual hydraulic foot pump controls the platform lift, lower, and tilt. A manual selector valve is used to control the lift/lower sequence independently from the tilt sequence. The platform includes a 6-1/2" high retaining lip on model CART-500-LT and 7" high on CART-1000-LT series. Rolls on two (2) rigid and two (2) swivel 5" poly casters.

Models CART-400-LT and CART-600-LT are elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it simultaneously tilts to an angle of 45 degrees at full elevation. Builtin retaining lip keeps containers in place. Units roll on 5" polyurethane casters, two (2) rigid and two (2) swivel with brakes.

• Unique lift design quickly raises & lowers material
• Ergonomic cart design improves user safety
• Caster construction provides easy portability when loaded
• Steel construction offers long lasting rugged use

Manuals

CART-1000-LT Owners Manual

Testing Certificates

CART-1000-LT

SDS Sheets

Hydraulic Oil SDS Sheet for: CART-1000-LT
