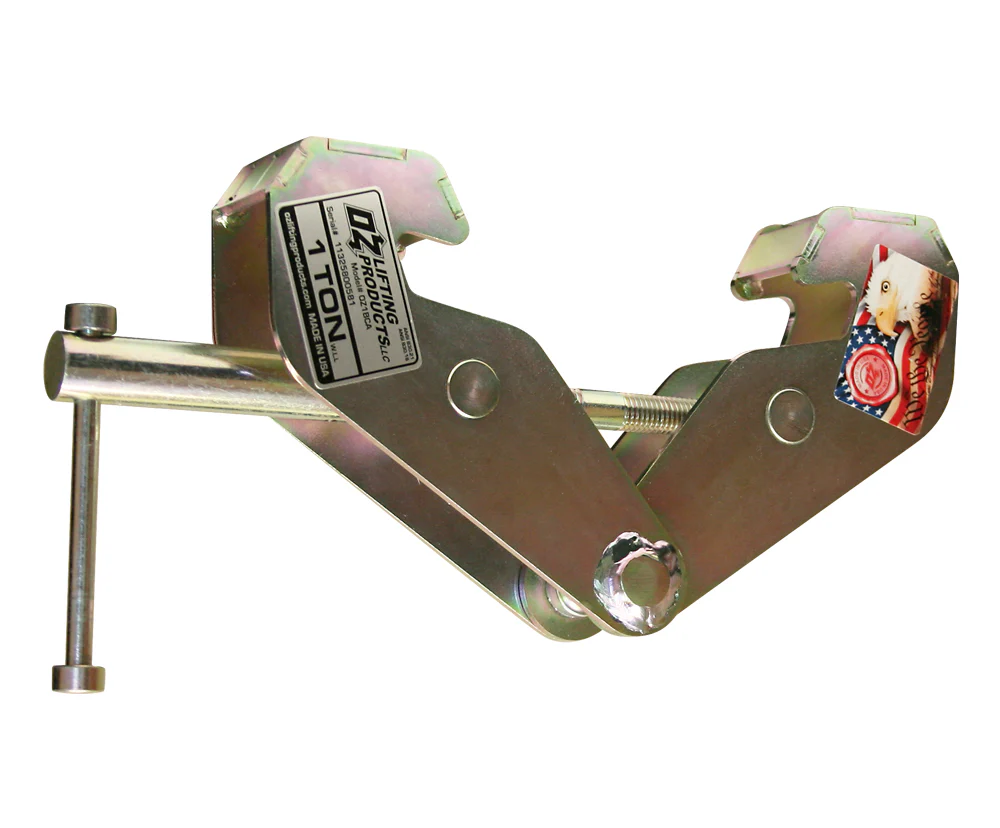

OZ Lifting USA Beam Clamp
The Oz Lifting USA beam clamp is engineered for use with manual or powered hoists to secure beams for lifting. The clamp is made with an all-steel fully-welded construction and allows for super-quick attachment to most I-beams. The clamps have all been individually tested and are available in 1 ton, 2 ton, 3 ton, 5 ton and 10 ton lifting capacities.
FEATURES
- Robust all-steel fully-welded construction
- Super-quick adjustment to most I-Beams (see measurements below)
- ROHS compliant zinc plated finish
- Permanent engraved load rating
- Made in USA
Standards – CE, ASME B30.16
(for use with manual or powered hoists)
Specifications
| OZ1BCA | OZ2BCA | OZ3BCA | OZ5BCA | OZ10BCA | |
| Safe Working Load (lbs) | 2,000 | 4,000 | 6,000 | 10,000 | 20,000 |
| A | 3 – 9 | 3 – 9 | 3.5 – 13 | 3.5 – 13 | |
| B | 14.75 | 14.75 | 20.5 | 20.5 | 22 |
| C | 2.51 | 2.91 | 3.94 | 4.41 | 4.72 |
| D | 0.9 | 0.9 | 1.5 | 1.5 | 1.5 |
| E | 9.5 | 9.5 | 11 | 11 | 11.5 |
| F | 4.75 – 5.75 | 4.75 – 5.75 | 7.5 – 9 | 7.5 – 9 | 5.5 – 9.375 |
| G | 1.75 | 1.75 | 2.5 | 2.5 | 4 |
| H | .75 | .875 | .975 | 1.125 | 1.625 |
| Net Weight (lbs) | 9 | 11 | 22 | 26 | 39 |
Reduction in Working Load Limits when side loads are applied
| Angle from Vertical | 0° | 0-15° | 15-30° | 30-45° |
| Reduction Factor | none | 20% | 35% | 50% |
